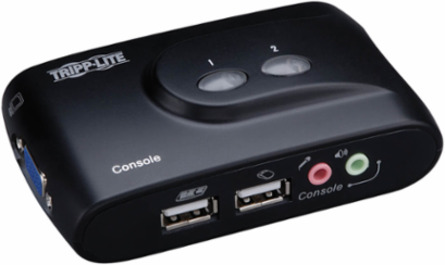

Tripp Lite B004-VUA2-K-R 2-Port Compact USB KVM Switch with Audio and Cable
Tripp Lite B004-VUA2-K-R 2-Port Compact USB KVM Switch with Audio and Cable
- MPN: B004-VUA2-K-R
- UPC: 037332140043
- PPN: TRP-B004-VUA2-K-R
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$111.57/ EA
Description
2-Port Compact USB KVM Switch with Audio and Cable
Features
- Fast, easy switching via keyboard hot keys, push buttons or software (not required)
- PC and Mac compatible
- Allows sharing of audio components between systems; listen to music from one computer while switching to the other computer
- Compact design saves desk space
- No AC adapter required
- (x2) 6ft USB KVM Cable kits and (x2) 6ft 3.5mm Audio Cable kits included
- Compatible with all major operating systems
- 3-year limited warranty
Specifications
Features & Specifications
- Number of Users
- 1
- Port Selection
- Pushbutton; Hotkey; Software
- USB Specification
- USB 1.1 (up to 12 Mbps)
- Cat5 KVM Switch
- No
NIAP-Certified SecureNo
Max Supported Video Resolution2048 x 1536 @60Hz
Audio SpecificationStereo Audio
TechnologyUSB; VGA/SVGA; Stereo Audio
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 2

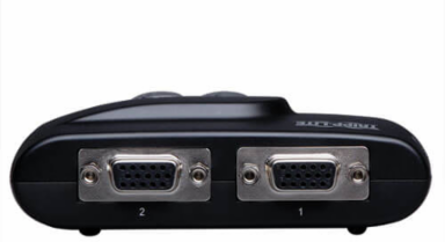

- Side A - Connector 1
- (2) HD15 (FEMALE)
- Side B - Connector 2
- (2) USB A (FEMALE)
- Computer Keyboard and Mouse Interface
- PS/2
- Console Keyboard and Mouse Interface
- USB
- Connector Plating
- Nickel
PC/Server ConnectionsUSB; VGA
Side B - Connector 1HD15 (FEMALE)
Side B - Connector 3(2) 3.5MM (FEMALE)
Computer Monitor InterfaceVGA
Console Monitor InterfaceVGA
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 3.00 x 7.90 x 7.80
- Unit Dimensions (hwd / in.)
- 1.3 x 4 x 2.6
- Unit Weight (lbs.)
- 0.22
Material of ConstructionABS
Shipping Weight (lbs.)1.80
Unit Packaging TypeBox
User Interface, Alerts & Controls
- LED Indicators
- Green (Selected PC)
Input
- Bus Powered
- Yes
Communications
- IP Remote Access
- No
Environmental
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Relative Humidity
- 0%-90% RH, Non-Condensing
- Power Consumption (Watts)
- 0.5
Storage Temperature Range-4 to 140 F (-20 to 60 C)
BTUs1.7 BTU/Hr
Overview
- UPC Code
- 037332140043
- Max CPU
- 2
ConsoleNo
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
