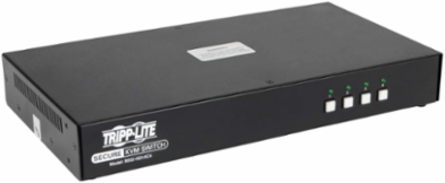

Tripp Lite B002-HD1AC4 Secure 4-Port KVM Switch HDMI to DisplayPort, 4K, NIAP PP3.0 Certified
- MPN: B002-HD1AC4
- UPC: 037332221971
- PPN: TRP-B002-HD1AC4
CAD
$1154.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Secure 4-Port KVM Switch HDMI to DisplayPort, 4K, NIAP PP3.0 Certified
Features
- Safely and securely switches between 4 isolated computers with different security levels
- Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches V3.0
- Common Access Card (CAC) port supports biometric and other smart card readers
- Supports UHD resolutions up to 3840 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- 4-Port KVM Switch, HDMI to DisplayPort, for Applications That Demand Secure Networks
- NIAP PP3.0 Certified to Meet Today’s Top Information Assurance Standards
- Top-of-the-Line Security Features Keep Your Data Safe
- CAC Port Supports Biometric and Other Smart Card Readers
- Anti-Tampering Protection Prevents Physical Breeches
- Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
- Accessory Cable Kits - P783-006-U & P783-010-U (Not Included)
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
| Input Voltage | 100-240V |
|---|---|
| Input Current | 0.8A |
| Output Current | 2A |
| Ports | 4 |
| Number of Users | 1 |
| Unit Weight | 2.45 lbs (1.11 kg) |
| External Power Supply Plug | NEMA 1-15P North America |
| Power Connector Type | Positive Pin, Negative Sleeve |
| Color | Black |
| Storage Temperature Range | 4 to 140 F (-20 to 60 C) |
| NIAP Certification | Certified to NIAP PP3.0, NIAP-Certified Secure |
| Common Access Card (CAC) Support | Yes |
| Computer Monitor Interface | DisplayPort |
| Console Monitor Interface | HDMI |
| Warranty | 3-year limited warranty |
| Input Frequency | 50/60 Hz |
|---|---|
| Output Voltage | 12V |
| Max Supported Video Resolution | 3840 x 2160 @ 30 Hz |
| Port Selection | Pushbutton |
| Unit Dimensions (H x W x D) | 1.76 x 12.57 x 6.7 in |
| External Power Supply Cord Length | 5 ft (1.5 m) |
| Power Connector Dimensions | 5.5 x 2.1 x 7.5 mm |
| Material | Not provided |
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Relative Humidity | 0% to 80%, Non-Condensing |
| Certifications | FCC, UL, cUL |
| Computer Keyboard and Mouse Interface | USB |
| Console Keyboard and Mouse Interface | USB |
| Technology | DisplayPort, HDMI, USB |
