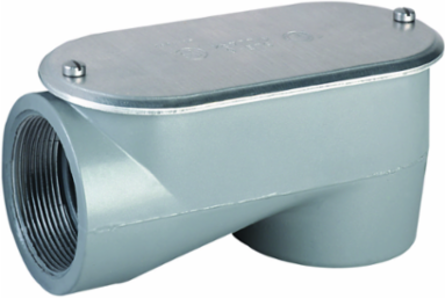

Killark SLB-2 3/4 Inch Aluminum LB Hub Conduit Body with Cover & Gasket, 2.9 cu. in. Volume
- MPN: SLB-2
- UPC: 783936590028
- PPN: HBL-SLB-2
- UNSPSC: 39131708
CAD
$43.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3/4" LB Hub, Aluminum Service Conduit Body
Features
- Designed for easier wire pulling
- Includes cover and gasket
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 2.9 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 2 in
- Length
- 4 in
- Type
- Mogul Conduit Body With Cover & Gasket
- Weight
- 0.27 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11852
- UL File Number
- E22698
- Series
- SLB Series
- BOX SIZE
- 4.250x7.625x5.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936590028
- Master Pack Description
- Each
Dimensions4 in x 3 in x 2 in
ApplicationMogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesA raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 2.9 cu. in.
Width3 in
Engineering Drawing 1 Display TextSLB-2 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceSERV ENTRANCE LB 3/4"
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D232
Gross Weight with Packaging0.27
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
