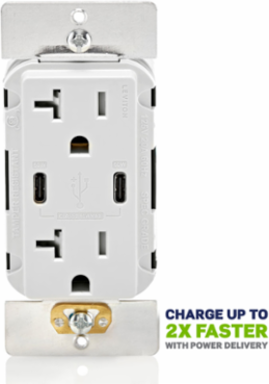

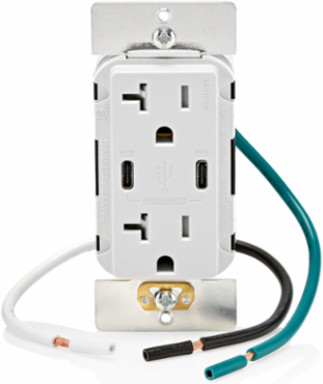

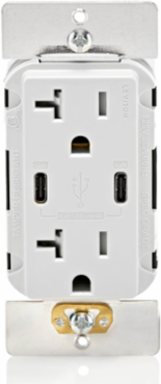

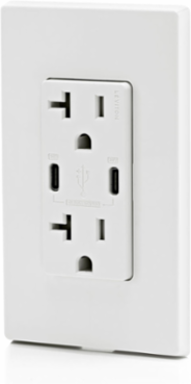

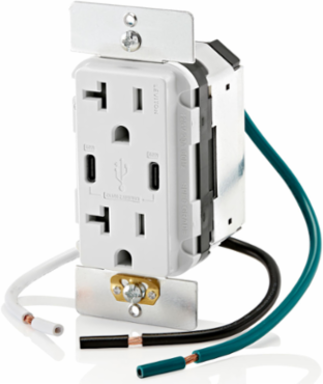

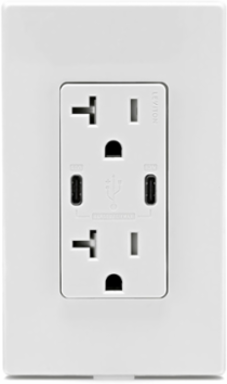

Leviton T5836-W 60W USB Dual Type-C Power Delivery Wall Outlet Charger with 20A Tamper-Resistant Outlet
- MPN: T5836-W
- UPC: 078477471579
- PPN: LEV-T5836-W
CAD
$145.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 20A Tamper-Resistant Outlet - White
Features
- Your time matters. Charge for minutes, enjoy for hours! The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices. Also compatible with non-PD devices as well as Type A devices (adapter required) Up to 60W charge on a single port when connected to a PD-enabled device, up to 30W charge per port (60W total) when both USB ports are in use Maximum charging outputs: 5V/3A, 9V/3A, 15V/3A, 20V/3A with a maximum power output of 60W USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, such as iPhones, iPads, Samsung Galaxy, Samsung Tabs, Google Pixel and More Compatible with USB 3.1, 3.0, 2.0, 1.1 devices Smart chip recognizes and optimizes the charging requirements of individual devices No data transfer capability Overcurrent protection helps protect the electronics from receiving too much power, which can damage the device Internal thermoregulator prevents the electronics from overheating Tamper-resistant outlets block access by most non-rated/foreign objects to help keep children safe For new construction and retrofit installations, an extra deep electrical box (20 cu. in.) or wallbox extender is required Use with Decora wallplate or Decora Plus screwless wallplate (sold separately)
- POWERFUL – 60W charge on a single port. Up to 2x the charging power with PD-enabled devices
- INNOVATIVE – USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
- FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Mechanical Specifications
- Type
- 60W Type C/C with PD Duplex Receptacle
Product Features
- Amperage
- 20 A
- Color
- White
- Grounding
- Grounding
- Power Delivery
- Yes
- Tamper Resistant
- Yes
- Voltage
- 125 VAC
- Wire
- 3
BrandDecora
GradeResidential/Commercial Specification Grade
NEMA5-20R
Strap MaterialSteel
TerminationWire Leads
WallplateIncluded
Environmental Specifications
- Body Material
- Thermoplastic
- Notes
- w/ Wallplate
- Yoke
- Zinc-Plated Steel
Face MaterialThermoplastic
Operating Temperature-10°C to 40°C
Electrical Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Standards & Certifications
- FCC Part 15
- Class B
- NOM
- 057
- UL 498
- Yes
ListedcCSAus
UL 1310Yes
Warranty2-Year Limited
