Brady 2HX-125-2-RD PermaSleeve HX 3" Double Sided Heat Shrink Wire Marking Sleeves, 0.11 in Max Wire Diameter
- MPN: 2HX-125-2-RD
- UPC: 662820821724
- PPN: BRD-2HX-125-2-RD
CAD
$2509.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

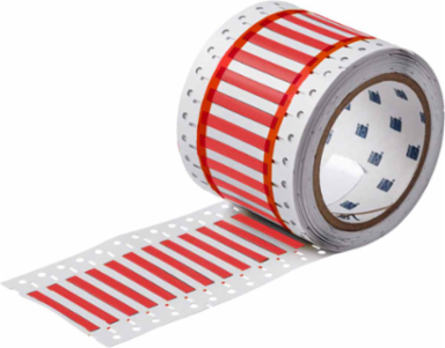

Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Key Specifications
- Material Number
- B-7642
- Diameter as Supplied
- 0.125 in
- UOM
- Roll of 2500 Each
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Gauge
- 16 AWG
- Minimum Wire Diameter
- 0.062 in
- Printable Sides
- Double-Side Printable
- UPC
- 662820821724
- Quantity per Row
- 1
- Roll Width
- 2 in

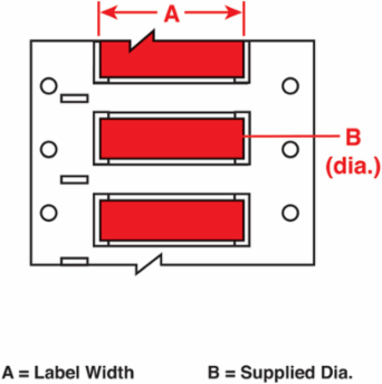

- Sleeve Size
- 0.125 in Dia x 2 in W
- Sleeve Width
- 2 in
- Applications
- Cable & Wire Marking
- For Use with Printer
- BBP®72 Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-Shrinkable
- Resistance Properties
- Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant
California Prop 65Cancer - || www.p65warnings.ca.gov
Dimensions0.235 in H
FinishMatte
Maximum Wire Diameter0.11 in
Minimum Service Temperature °F-40 °F
Minimum Wire Gauge20 AWG
Product Number117445
Quantity per Roll2500
Recovered Diameter0.062 in
Shrink Ratio2:1
Sleeve Size(m)3.2 mm Dia x 50.8 mm W
Trade NamePermaSleeve®
ColorRed
Label/Media FormatRoll
MaterialPolyolefin
Print TechnologyThermal Transfer
Suggested Ribbon SeriesR4300, R6000, R6400, R6600
