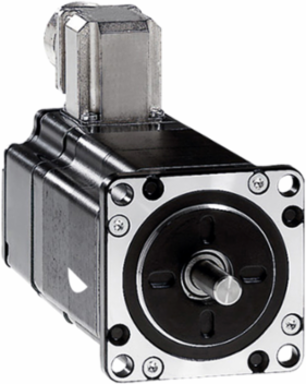

Schneider Electric BRS368H130AAA 3-Phase Stepper Motor 1.70 Nm 8 mm Shaft 79 mm Length
- MPN: BRS368H130AAA
- PPN: SCH-BRS368H130AAA
CAD
$358.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium SD3 range, an offer of stepper motors for motion control. The 6-pole stepper motor with 8mm smooth shaft, centering collar of 38mm, without holding brake and second shaft end. It is a 3-phase stepper motor with a rated current of 5.8A, a mechanical speed of 3000RPM and a supply voltage of 34V DC, 48V DC. It is furnished with flying leads for electrical connection. The shaft dimensions are 8mm (diameter) x 21mm (length). It offers service life of about 20,000 hours (bearing). It is an IP41 and IP56 rated product. Its dimensions are 79mm (length) and the centering collar dimensions are 1.6mm (depth) x 38mm (diameter) with 66.6mm mounting hole. It weighs 2kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, food and beverage applications. It meets EN 50347 and IEC 60072-1 standards. This stepper motor is compatible with Lexium SD3 motor drives. It supports 57.2mm flange mount with a natural convection cooling system. It has 4 mounting holes with 5.2mm diameter. The SD3 is a universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Lexium SD3, three-phase range up to 19.7Nm with high accuracy and high torque at low rotation speeds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, United States |
|---|
Physical Attributes
| Motor Flange Size | 57.2 mm |
|---|
| Shaft Length | 21 mm |
|---|
Complementary Attributes
| Line Rated Current | 5.8 A |
|---|---|
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Starting Frequency | 6 kHz |
| Maximum Axial Force Fa | 100 N tensile force)8.4 N force pressure) |
|---|---|
| Maximum Radial Force Fr | 50 N first shaft end)40 N second shaft end) |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Supply Voltage Limits | 34-34 V DC, 48-48 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.8296116502580756, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.8793476571672316, 0.9 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 567 kg CO2 eq., 567.4018457610783 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 38 mm |
| Device Short Name | BRS3 |
| Holding Brake | without |
| Motor Type | 3-phase stepper motor |
| Mounting Support | flange |
| Number Of Motor Poles | 6 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Resistance | 0.7 Ohm winding) |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft Diameter | 8 mm |
| Software Version | v6.2.5-6 |
| Temperature Class | F winding IEC 60034-1 |
| Total Lifecycle Carbon Footprint | 623 kg CO2 eq. |
| Vibration Resistance | 20 m/s² maximumA IEC 60034-14 |
| Pep Code | ENVPEP111101EN-V3 |
| Pep Verification Date | 2025-09-18 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Length Total | 79 mm |
| Package Weight(Lbs) | 1.380 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Certificate Agency | IEC 50347, IEC 60072-1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.342027601660965 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 52 kg CO2 eq., 51.93119882449916 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 66.6 mm |
| Electrical Connection | flying leads |
| Holding Torque | 1.7 N.m |
| Mounting Holes Diameter | 5.2 mm |
| Nominal Torque | 1.5 N.m |
| Number Of Mounting Holes | 4 |
| Product Or Component Type | motion control motor |
| Resolution | 1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution |
| Rotor Inertia | 0.38 kg.cm² |
| Service Life In Hours | 20000 h bearing) |
| Shaft End | smooth shaft |
| Sustainable Packaging | No |
| Time Constant | 4.6 ms |
| Type Of Cooling | natural convection |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To coordinate and synchronize motion control at 80W during 40% and at 15 W during 30% for 10 years.To coordinate and synchronize motion control at 80W during 40% and at 15 W during 30% for 10 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 93 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501512040 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-40 °C, -25-40 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating<= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111101EN-V3 |
| Ip Degree Of Protection | IP56 total except shaft bushing: conforming to IEC 60034-5IP41 shaft bushing without shaft seal ring: conforming to IEC 60034-5 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 15-85 % without condensation |
| Pep Verification Date | 2025-09-18 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 623.3840314946639 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP111101EN-V3 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | motion control motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
