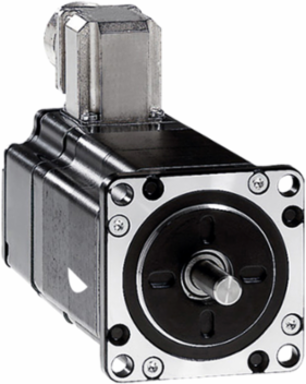

Schneider Electric BRS368W131ACA 3-Phase Stepper Motor 1.7 Nm Torque, 8 mm Shaft, 116 mm Length
- MPN: BRS368W131ACA
- PPN: SCH-BRS368W131ACA
CAD
$1244.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Offering precision and reliability in motion control applications, this stepper motor from Schneider Electric is engineered to deliver a torque of 1.7 Nm. With an 8 mm shaft diameter and a length of 116 mm, it s designed to fit seamlessly into various automation systems. This robust motor is ideal for applications requiring accurate positioning and smooth operation, making it a valuable component in any motion control setup. Its construction reflects a commitment to quality and efficiency, ensuring it meets the rigorous demands of modern industrial environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Physical Attributes
- Motor Flange Size
- 57.2 mm
Shaft Length21 mm
Complementary Attributes
- Line Rated Current
- 0.9 A
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Starting Frequency
- 8.5 kHz
Maximum Axial Force Fa100 N tensile force)8.4 N force pressure)
Maximum Radial Force Fr25 N second shaft end)50 N first shaft end)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 0
- -105.3637 N.m, -105.3637 N.m
- Coefficient 2 0
- -105.3637 N.m, -105.3637 N.m
- Supply Voltage Description
- single phase 230 V AC, single phase 115 V AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3026860148, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 598 kg CO2 eq., 597.625709589
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 38 mm
- Coefficient 1 1
- 105.9343 N.m/rpm
- Coefficient 2 1
- 105.9343 N.m/rpm
- Coefficient M0
- 0.00027 N.m/rpm
- Continuous Stall Torque
- 1.53 N.m
- Device Short Name
- BRS3
- Feedback Type
- single turn encoder
- Holding Torque
- 1.7 N.m
- Mounting Holes Diameter
- 5.2 mm
- Nominal Torque
- 1.5 N.m
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Resistance
- 25 Ohm winding)
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 8 mm
- Sizing Reference
- BRS368
- Speed Feedback Resolution
- 10000 points/turn
- Sustainable Packaging
- No
- Time Constant
- 4.6 ms
- Type Of Cooling
- natural convection
- Voltage 1
- 115 V
- Voltage 1 Speed 1 Max
- 667.389709224139 rpm
- Voltage 2 Speed 2
- 667.389709224139 rpm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Length Total
- 116 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1517.716
- Customs Code
- 8501512040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 2-34.5519 N.m/rpm², -34.5519 N.m/rpm²
Coefficient 2 2-34.5519 N.m/rpm², -34.5519 N.m/rpm²
Certificate AgencyIEC 60072-1, IEC 50347
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2241881524
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.5904411597
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes66.6 mm
Coefficient 1 33.6901 N.m/rpm3
Coefficient 2 33.6901 N.m/rpm3
Coefficient M0 Max0.00027 N.m/rpm
Curve Typesemilog
Electrical Connectionconnector
Holding Brakewithout
Motor Type3-phase stepper motor
Mounting Supportflange
Number Of Motor Poles6
Peak Stall Torque1.53 N.m
Product Or Component Typemotion control motor
Resolution1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
Rotor Inertia0.38 kg.cm²
Service Life In Hours20000 h bearing)
Shaft Endsmooth shaft
Software VersionEIME v5.8.1
Supply Voltage Limits230-230 V AC325-325 V DC
Temperature ClassF winding IEC 60034-1
Total Lifecycle Carbon Footprint607 kg CO2 eq.
Vibration Resistance20 m/s² maximumA IEC 60034-14
Voltage 1 Speed 1667.389709224139 rpm
Voltage 2230 V
Voltage 2 Speed 2 Max667.389709224139 rpm
Pep CodeENVPEP1111001EN
Pep Verification Date2020-07-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionCoordinate and synchronize motion control up to 80W during 10 years and a 70% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1219.7424
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.1 °
Package Weight(Lbs)2.346 kg
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1517.716
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-40 °C, -25-40 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating<= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1111001EN
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5IP56 total except shaft bushing: conforming to IEC 60034-5
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2020-07-01
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint606.7430249159
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1111001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- motion control motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
