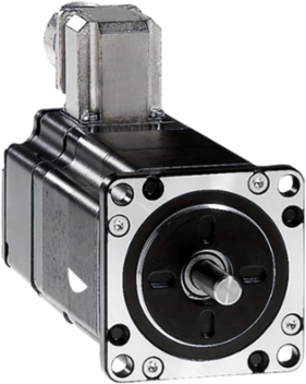

Schneider Electric BRS368W130ACA 3-Phase Stepper Motor 1.7 Nm 8 mm Shaft Length 116 mm
- MPN: BRS368W130ACA
- PPN: SCH-BRS368W130ACA
CAD
$834.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3-Phase Stepper Motor 1.7 Nm 8 mm Shaft Length 116 mm
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
Physical Attributes
- Motor Flange Size
- 57.2 mm
Shaft Length21 mm
Complementary Attributes
- Line Rated Current
- 0.9 A
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Starting Frequency
- 8.5 kHz
Maximum Axial Force Fa100 N tensile force)8.4 N force pressure)
Maximum Radial Force Fr25 N second shaft end)50 N first shaft end)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 0
- -105.3637 N.m, -105.3637 N.m
- Coefficient 2 0
- -105.3637 N.m, -105.3637 N.m
- Supply Voltage Description
- single phase 115 V AC, single phase 230 V AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2580443434, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 598 kg CO2 eq., 597.625709589
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Coefficient 1 3
- 3.6901 N.m/rpm3
- Coefficient 2 3
- 3.6901 N.m/rpm3
- Coefficient M0 Max
- 0.00027 N.m/rpm
- Curve Type
- semilog
- Electrical Connection
- connector
- Holding Torque
- 1.7 N.m
- Mounting Holes Diameter
- 5.2 mm
- Nominal Torque
- 1.5 N.m
- Number Of Mounting Holes
- 4
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Resistance
- 25 Ohm winding)
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 8 mm
- Sizing Reference
- BRS368
- Supply Voltage Limits
- 230-230 V AC325-325 V DC
- Temperature Class
- F winding IEC 60034-1
- Total Lifecycle Carbon Footprint
- 605 kg CO2 eq.
- Vibration Resistance
- 20 m/s² maximumA IEC 60034-14
- Voltage 1 Speed 1
- 667.389709224139 rpm
- Voltage 2
- 230 V
- Voltage 2 Speed 2 Max
- 667.389709224139 rpm
- Pep Code
- ENVPEP1111001EN
- Pep Verification Date
- 2020-07-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Coordinate and synchronize motion control up to 80W during 10 years and a 70% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 1219.7424
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Accuracy Error [Angular]
- 0.1 °
- Package Weight(Lbs)
- 1.558 kg
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1517.716
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 2-34.5519 N.m/rpm², -34.5519 N.m/rpm²
Coefficient 2 2-34.5519 N.m/rpm², -34.5519 N.m/rpm²
Certificate AgencyIEC 50347, IEC 60072-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1911237446
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 7.3234792496
Local Data StatusPublishable
Return IndicatorN
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter38 mm
Coefficient 1 1105.9343 N.m/rpm
Coefficient 2 1105.9343 N.m/rpm
Coefficient M00.00027 N.m/rpm
Continuous Stall Torque1.53 N.m
Device Short NameBRS3
Holding Brakewithout
Motor Type3-phase stepper motor
Mounting Supportflange
Number Of Motor Poles6
Peak Stall Torque1.53 N.m
Product Or Component Typemotion control motor
Resolution1.8 °, 0.9 °, 0.72 °, 0.36 °, 0.18 °, 0.09 °, 0.072 °, 0.036 ° step angle200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps number of full steps per revolution
Rotor Inertia0.38 kg.cm²
Service Life In Hours20000 h bearing)
Shaft Endsmooth shaft
Software VersionEIME v5.8.1
Sustainable PackagingNo
Time Constant4.6 ms
Type Of Coolingnatural convection
Voltage 1115 V
Voltage 1 Speed 1 Max667.389709224139 rpm
Voltage 2 Speed 2667.389709224139 rpm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total116 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1517.716
Customs Code8501512040
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-40 °C, -25-40 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating<= 3280.84 ft (1000 m) without power derating, <= 3280.84 ft (1000 m) without power derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1111001EN
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5IP56 total except shaft bushing: conforming to IEC 60034-5
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2020-07-01
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint605.3983569265
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1111001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- motion control motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
