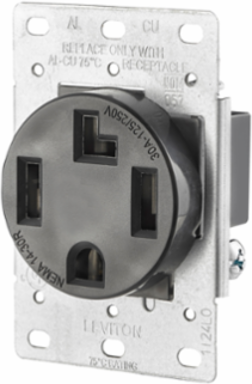

Leviton 278-S00 30 Amp Flush Mount Outlet NEMA 14-30R, 125/250 Volt, 3-Pole, 4-Wire
- MPN: 278-S00
- UPC: 078477695319
- PPN: LEV-278-S00
CAD
$18.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
30 Amp, 125/250 Volt, NEMA 14-30R, 3-Pole, 4-Wire, Flush Mount Outlet/Receptacle, Straight Blade, Grounding, Side Wired, Steel Strap – Black WARNING: Do not use with single-gang wallboxes, single-gang mud rings or single-gang box extenders. Not Recommended for Electric Vehicle Charging (See Leviton EV Outlets )
Features
- DURABLE – Shallow design built of durable high-impact thermoplastic
- EASY TO INSTALL – Terminals marked for easy identification and fast wiring, terminals require 40 in lbs
- EFFICIENT – Features heavy-gauge, high-performance copper contacts
- CONVENIENT – All mounting hardware included
- COMPATIBLE – Fits all wallplates with 2.15" diameter center hole
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C73
- File
- E13399
- NOM
- NOM - ANCE
- Warranty
- 2-Year Limited
CSA22.2 No 42, C22.2 No.14, C22.2 No.65
NEMAWD-6
ULUL 498, UL 486E
Material Specifications
- Body Material
- Polypropylene
- Face Material
- Polypropylene
- Strap Material
- Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Terminal Accom.#4 AWG
Torque Range40 in-lbs.
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire4
AC Horsepower Ratings
- At Rated Voltage
- 2 HP
