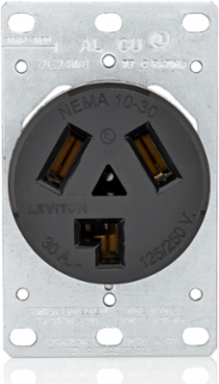

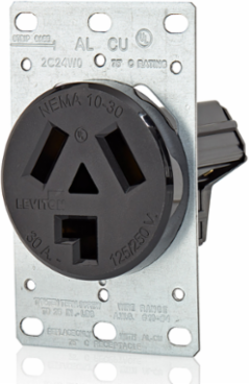

Leviton 5207-S10 30A Flush Mount Receptacle, NEMA 10-30R, Side Wired, Durable Black Thermoplastic
- MPN: 5207-S10
- UPC: 078477905753
- PPN: LEV-5207-S10
CAD
$27.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp, 125/250 Volt, NEMA 10-30R, 3P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-grounding, Side Wired, Steel Strap – Black
Features
- For use with #10 AWG thru #4 AWG copper, copper-clad, or aluminum wire. Tighten terminal screws to 25 in-lbs. of torque.
- DURABLE – Built of durable high-impact thermoplastic
- EASY TO INSTALL – Terminals marked for easy identification and fast wiring, terminals require 25 in lbs
- EFFICIENT – Features heavy-gauge, high-performance copper contacts
- CONVENIENT – All mounting hardware included
- COMPATIBLE – Fits all wallplates with 2.15" diameter center hole
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground |
| Torque Range | 25 in-lbs. |
| Terminal Accom. | #10WG thru #4 AWG |
|---|---|
| Termination | Side Wire |
Product Features
| Color | Black |
|---|
| Device Type | Single Receptacle |
|---|
Warranty
| Warranty | 10-year limited |
|---|
Electrical Specifications
| Amperage | 30A |
|---|---|
| Pole | 3 |
| Grounding | Non-Grounding |
|---|---|
| Wire | 3 |
Standards & Certifications
| CSA | Yes |
|---|---|
| UL498 | Yes |
| NEMA | 10-30R |
|---|
