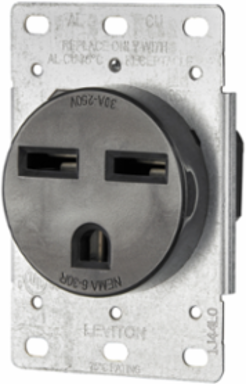

Leviton 5372-S00 30 Amp Flush Mount NEMA 6-30R Receptacle, 250 Volt, Black, Side Wired
- MPN: 5372-S00
- UPC: 078477695395
- PPN: LEV-5372-S00
CAD
$12.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
30 Amp, 250 Volt, NEMA 6-30R, 2P, 3W, Flush Mtg Receptacle, Straight Blade, Grounding, , Side Wired, Steel Strap – Black WARNING: Do not use with single-gang wallboxes, single-gang mud rings or single-gang box extenders
Features
- DURABLE – Shallow design built of durable high-impact thermoplastic
- EASY TO INSTALL – Terminals marked for easy identification and fast wiring, terminals require 40 in lbs
- EFFICIENT – Features heavy-gauge, high-performance copper contacts
- CONVENIENT – All mounting hardware included
- COMPATIBLE – Fits all wallplates with 2.15" diameter center hole
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Pole | 2 |
| Torque Range | 40 in-lbs. |
| Temperature Rise | Max 30 C after 50 cycles OL at 150% rated current |
| Body Material | Polypropylene |
| Strap Material | Galvanized Steel |
| Color | Black |
| Dielectric Voltage | Withstands 2000 V per UL498 |
| Grounding | Yes |
| Compliance | ROHS, ANSI C73, CSA 22.2 No 42, 14, 65, UL 498, UL 486E, NOM ANCE |
| UL | UL 498, UL 486E |
| NOM | NOM - ANCE |
| Terminal ID | X/Black screw=Hot; Y/Black screw=Hot; White/Silver screw=Neutral; Green/Green screw=Ground |
| Country of Origin | Mexico |
| Voltage | 250 VAC |
|---|---|
| Horsepower Rating | 2 HP |
| Operating Temperature | -40 C to 60 C |
| Line Contacts Material | Brass Double-Wipe |
| Face Material | Polypropylene |
| Wires | 3 |
| Flammability Rating | V-2 per UL 94 |
| Current Limiting | Full Rated Current |
| NEMA Configuration | WD-6 |
| File | E13399 |
| CSA | 22.2 No 42, C22.2 No.14, C22.2 No.65 |
| ANSI | C73 |
| Terminal Accommodation | #4 AWG |
