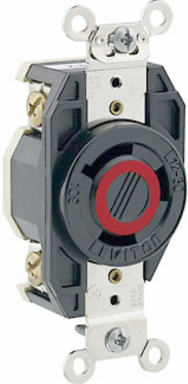

Leviton 2680 30 Amp 480 Volt Flush Mount Locking Receptacle NEMA L12-30R Industrial Grade
Leviton 2680 30 Amp 480 Volt Flush Mount Locking Receptacle NEMA L12-30R Industrial Grade
- MPN: 2680
- UPC: 078477045909
- PPN: LEV-2680
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$85.07/ EA
Description

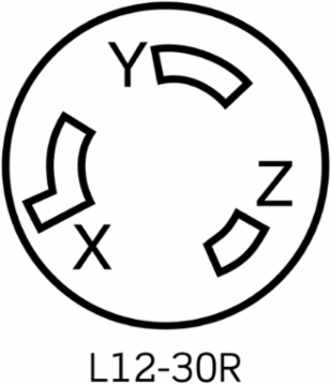

30 Amp, 480 Volt 3-Phase, NEMA L12-30R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- UL
- 498
- Warranty
- Limited Lifetime Warranty
CSAC22.2 No. 42
NOM057
UL Fed SpecW-C-596
Material Specifications
- Base Material
- Nylon
- Color
- Black
- Face Material
- Nylon
- Grounding Screw
- Chromated Brass
- Strap Material
- Nickel-Plated Brass
- Terminal Screws
- Chromated Brass
Body MaterialNylon
Cover MaterialValox 357
Ground ContactsBrass
Line ContactsBrass
Terminal ClampsNickel-Plated Brass
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 14-8 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDMarked on Device
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- V-0-Max
Device TypeLocking Receptacle
Environmental Specifications
- Environment
- Corrosive
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-0 per UL 94
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
GroundingNon-Grounding
Pole3
Voltage480 VAC
AC Horsepower Ratings
- At Rated Voltage
- 10 HP
