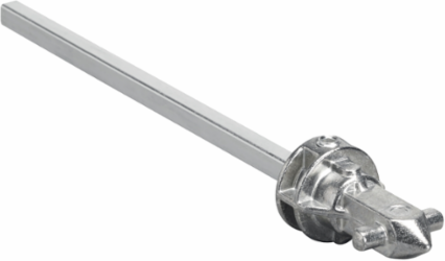

Schneider Electric VLSS3007N TeSys VLS Disconnect Switch, 300 mm Shaft Extension, 0.28 Inch x 11.81 Inch
- MPN: VLSS3007N
- PPN: SCH-VLSS3007N
CAD
$35.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH3S7RD or VLSH3S7BD. It can also be used with a mechanical coupling system VLS8M2. This shaft extension is 0.28 inches by 0.28 inches and 11.81 inches long. The shaft extension weighs 0.40 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- VLS
- Energy Efficiency Optimized
- False
- Product Or Component Type
- shaft extension
- Returnability
- Yes
- Length Total
- 328 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-03-26
Stocking FlagN
TraceabilityNo
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameVLSS
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Sustainable PackagingNo
Width Nominal25 mm
Package Weight(Lbs)164.000 g
Warranty (In Months)18
General Attributes
- Product Or Component Type
- shaft extension
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
