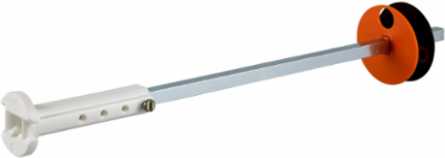

Schneider Electric VZ17 TeSys Vario Shaft Extension 300-330mm Distance, Green Premium

MPN: VZ17
PPN: SCH-VZ17

$21.86

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys Vario shaft extension, for TeSys Vario switch bodies V02 to V2. It allows the operation of a switch body located on the back of enclosure with a door-mounted handle. Possible distance between back of enclosure and door 300-330mm.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, United States

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Carbon Footprint Of The Distribution Phase [A4]	0.014615007579451151, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00657581023242548, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	29 kg CO2 eq., 28.971796700100345
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	LV equipment - LV fuse - switch
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	shaft extension
Mechanical Interlocking	door interlocking function
Product Or Component Type	shaft extension
Range	TeSys
Software Version	v6.1
Total Lifecycle Carbon Footprint	30 kg CO2 eq.
Pep Code	ENVPEP2211006EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Czech Republic, CZ
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %	57
Length Total	300 mm
Accessory / Separate Part Category	locking accessory
Halogen-free Status	Halogen free product
Package Weight(Lbs)	89.000 g
Warranty (In Months)	18
Customs Code	8538908180

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.19888832270371523
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.5 kg CO2 eq., 0.4737625952524065
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	VZ
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	433.62
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; France, FR
Height Nominal	6 mm
Width Nominal	6 mm
Back/Door Distance	300-330 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Ats R Back Door Distance	300-330 mm

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Halogene Performance	Halogen free product
Toxic Heavy Metal Free	Yes
Carbon Footprint	29.665638435868345
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	V02...V2
Pep Code	ENVPEP2211006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211006EN
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
