Hubbell Wiring Device-Kellems SBTL2 Spider Portable Power Box, Locking Style, 50A, 19.8 Inch, Yellow
- MPN: SBTL2
- UPC: 783585369518
- PPN: HBL-SBTL2
- UNSPSC: 39121406
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

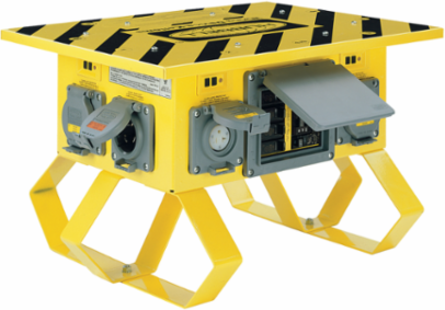

Temporary Power Products, Spider Portable Power, Complete Unit, Locking Style, With 6) 20A 125V Receptacles- 1) 30A 250V Locking Receptacle- 1) 50A 125/250V Inlet and Outlet, Yellow
Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Width | 19.800 in |
| Performance | Environment - Moisture Resistance - Indoor and outdoor wet and dry locations |
| Application | Heavy Duty Portable |
| Environmental Conditions | Indoor and Outdoor |
| Number of Poles | 3-Pole |
| Phase | Single Phase |
| Standard | UL 1640 cUL and CSA, UL 943 |
| Voltage Rating | 120/240 VAC |
| Wire Size | #10 AWG Min #6 AWG Max |
| Weight | 50.25 lb. |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Connectivity | Pre-Wired |
| Nema Rating | 6) L5-20R, 1) L6-30R, 1) 50A Non-NEMA In/Out |
| Number Of Wires | 4-Wire Grounding |
| Description - Invoice | SPIDER BOX TWIST-LOCK- TL2 |
| Harmonization Code | 8537109170 |
| MSDS Flag | No |
| Material - Mounting Hardware | Non-Mounted, Portable |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585369518 |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 50 A |
|---|---|
| Industry Standard(s) | UL 1640 cUL and CSA, UL 943 |
| Amperage Rating | 50 A |
| Color | Yellow |
| NEMA Rating | 6) L5-20R, 1) L6-30R, 1) 50A Non-NEMA In/Out |
| Number of Wires | 4-Wire Grounding |
| Special Features | Standard Product |
| Type | Locking Style 6-20A, 125V, 1-30A, 250V , 1-50A 125/250V Inlet and Outlet Yellow |
| Wattage | 12500 W |
| Voltage Rating Description | 120/240 VAC |
| Engineering Drawing 1 Display Text | SBTL2 AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Display Size | Standard Sized Product |
| Number Of Poles | 3-Pole |
| Class Code | A20 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A20A270 |
| Current Rating | 50 A |
| Series | Spider II |
| BOX SIZE | (in) |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
