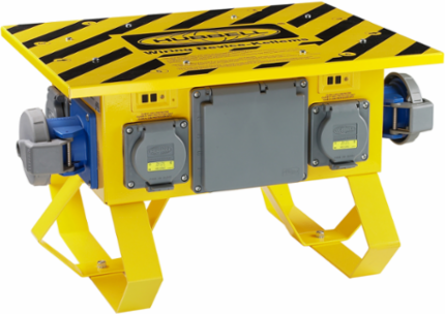

Hubbell Wiring Device-Kellems SCSB0 Spider II Portable Power Box, 60A Amperage, 3-Phase 120/208V AC
- MPN: SCSB0
- UPC: 783585075617
- PPN: HBL-SCSB0
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Temporary Power Products, Spider II Portable Power, Complete Unit, Straight Blade Style, With 6) 20A 125V Receptacles- 1) 60A 3-Phase Wye 120/208V AC Inlet and Outlet, Yellow
Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
Documentation & Downloads
Specifications
Dimensions
- Display Size
- Standard Sized Product
Certifications and Compliance
- Industry Standard(s)
- UL and cUL Listed
Nema Rating6) 5-20R, 1) 60A Non-NEMA In/Out
Conductor Related
- Number Of Wires
- 5-Wire Grounding
General
- Application
- Heavy Duty Portable
- Environmental Conditions
- Indoor and Outdoor
- Material
- Thermoplastic
- Number Of Poles
- 4-Pole
- Performance
- Environment - Moisture Resistance - Indoor and outdoor wet and dry locations
- Type
- 6-20A, 125V Straight Blade Receptacles, 1-60A, 3 Phase 120/208V Pin & Sleeve Inlet, 1-50A 125/250V Inlet, 1-60A 3 Phase 120/208V Pin & Sleeve Outlet
ColorYellow
Item TypeStraight Blade Singles
Material - Mounting HardwareNon-Mounted, Portable
OEM Brand NameHubbell Wiring Device-Kellems
SeriesSpider II
UPC783585075617
Electrical Ratings
- Amperage Rating
- 60 A
- Current / Amperage Rating
- 60 A
- Phase
- Three Phase
- Wattage
- 12480
ConnectivityPre-Wired
Current Rating60 A
Voltage Rating Description3-Phase 120/208 VAC
