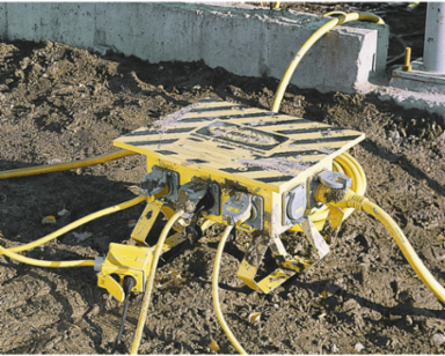

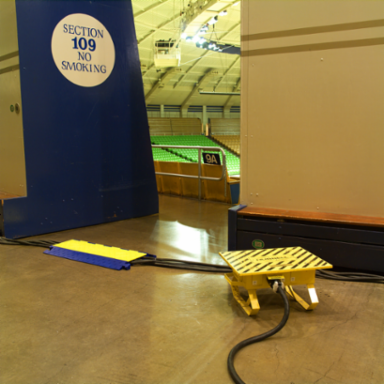

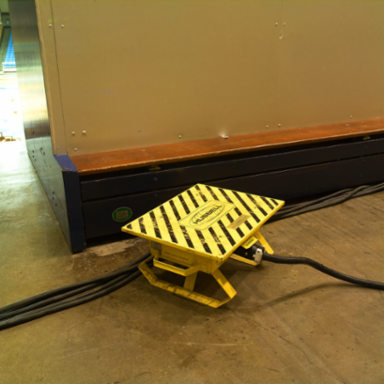

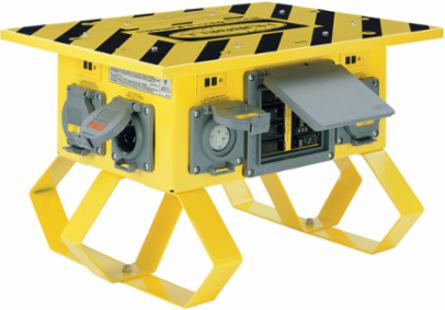

Hubbell Wiring Device-Kellems SDSB1A Spider Portable Power Complete Unit, 7x 20A 125V Receptacles, 1x 30A 125/250V Inlet, Yellow
Hubbell Wiring Device-Kellems SDSB1A Spider Portable Power Complete Unit, 7x 20A 125V Receptacles, 1x 30A 125/250V Inlet, Yellow
- MPN: SDSB1A
- UPC: 783585370897
- PPN: HBL-SDSB1A
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4854.97/ EA
Description
Temporary Power Products, Spider Portable Power, Complete Unit, Straight Blade Style, With 7) 20A 125V Receptacles- 1) 30A 125/250V Inlet and Outlet, Yellow
Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
- Standard Product
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 19.500 in
- Performance
- Environment - Moisture Resistance - Indoor and outdoor wet and dry locations
- Application
- Heavy Duty Portable
- Environmental Conditions
- Indoor and Outdoor
- NEMA Rating
- 6) 5-20R, 1) L14-30R
- Number of Wires
- 4-Wire Grounding
- Special Features
- Standard Product
- Type
- 7-20A, 125V Straight Blade Receptacles, 1-30A 125/250V Inlet and Outlet, Yellow
- Wattage
- 12480
- General Literature Asset 1 Display Text
- Safety Product Guide
- General Literature Asset 3 Display Text
- Entertainment Product Solution Guide
- Display Size
- Standard Sized Product
- Nema Rating
- 6) 5-20R, 1) L14-30R
- Number Of Wires
- 4-Wire Grounding
- Description - Invoice
- SPIDER BOX, 30A. STRAIGHTBLADE
- Harmonization Code
- 8537109170
- MSDS Flag
- No
- Sub Class Code
- A20A270
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Each - Pack Description
- Each
Current / Amperage Rating50 A
Industry Standard(s)UL 1640 cUL and CSA, UL 943
Amperage Rating30 A
ColorYellow
MountingPortable
Number of Poles3-Pole
PhaseSingle Phase
StandardUL 1640 cUL and CSA, UL 943
Voltage Rating125/250 VAC
Voltage Rating Description125/250 VAC
General Literature Asset 2 Display TextEducation Application Guide
ConnectivityPre-Wired
Mounting TypePortable
Number Of Poles3-Pole
Class CodeA20
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSDSB1
Current Rating60 A
SeriesSpider II
Carton - SCC-14 Next Lower Level Sub Pack00783585370897
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
