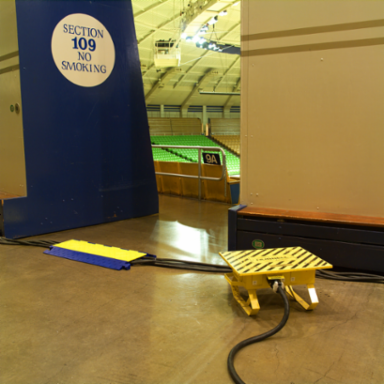

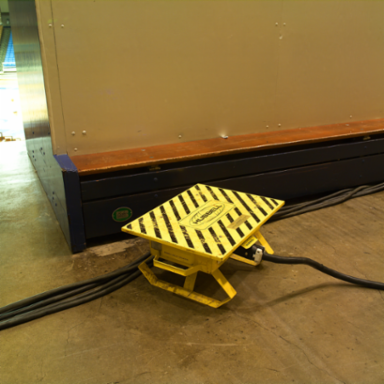

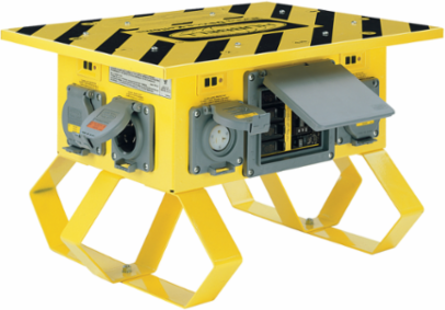

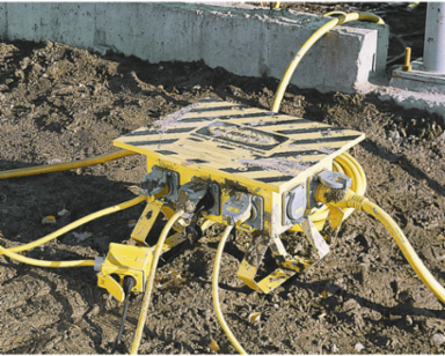

Hubbell Wiring Device-Kellems SBSB1A Spider Portable Power Unit, 7x 20A 125V Receptacles, 50A Locking Inlet/Outlet
Hubbell Wiring Device-Kellems SBSB1A Spider Portable Power Unit, 7x 20A 125V Receptacles, 50A Locking Inlet/Outlet
- MPN: SBSB1A
- UPC: 783585370873
- PPN: HBL-SBSB1A
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Temporary Power Products, Spider Portable Power, Complete Unit, Straight Blade Style, With 7) 20A 125V Straight Blade Receptacles, 1) 50A, 125/250V Locking Inlet and 1) 50A 125/250V Locking Outlet
Features
- Individual GFCI modules
- TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
- Standard stab termination circuit breakers with gasketed lift cover
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- SBSB1A AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Width
- 19.800 in
- Performance
- Environment - Moisture Resistance - Indoor and outdoor wet and dry locations
- Application
- Heavy Duty Portable
- Environmental Conditions
- Indoor and Outdoor
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Standard
- UL 1640 cUL and CSA, UL 943
- Voltage Rating
- 120/240 VAC
- Wire Size
- #10 AWG Min #6 AWG Max
- Connectivity
- Pre-Wired
- Nema Rating
- 7) 5-20R, 1) 50A Non-NEMA In/Out
- Number Of Wires
- 4-Wire Grounding
- Description - Invoice
- SPIDER BOX, 50AMP STRAIGHT BLADE
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Sub Class Code
- A20A270
- Current Rating
- 50 A
- Series
- Spider II
- BOX SIZE
- 15.400x27.300x19.800 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585370873
- Case Weight
- 49.950 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.200 in
- Pallet Weight
- 449.550 lb.
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextEntertainment Product Solution Guide
Current / Amperage Rating50 A
Industry Standard(s)UL 1640 cUL and CSA, UL 943
Amperage Rating50 A
ColorYellow
NEMA Rating7) 5-20R, 1) 50A Non-NEMA In/Out
Number of Wires4-Wire Grounding
Special FeaturesStandard Product
Type7-20A, 125V Straight Blade Receptacles, 1-50A, 125/250V Locking Inlet, 1-50A 125/250V Locking Outlet
Wattage12500
Voltage Rating Description120/240 VAC
Display SizeStandard Sized Product
Number Of Poles3-Pole
Class CodeA20
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberSGFI3PNBA
Material - Mounting HardwareNon-Mounted, Portable
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack49.950 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585370872
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
