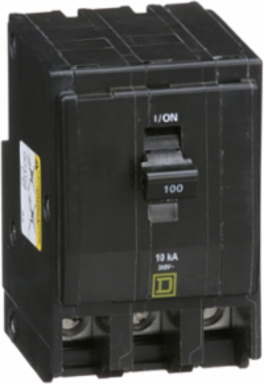

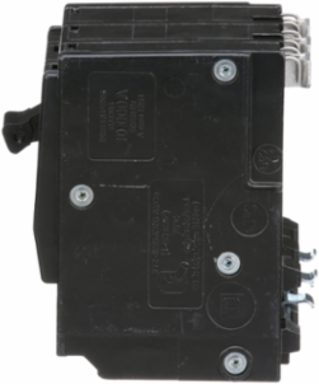

Square D QO3100 Mini circuit breaker, QO, 100A, 3 pole, 240VAC, 10kA, plug in
- MPN: QO3100
- UPC: 785901004417
- PPN: SCH-QO3100
CAD
$293.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mini circuit breaker, QO, 100A, 3 pole, 240VAC, 10kA, plug in
Features

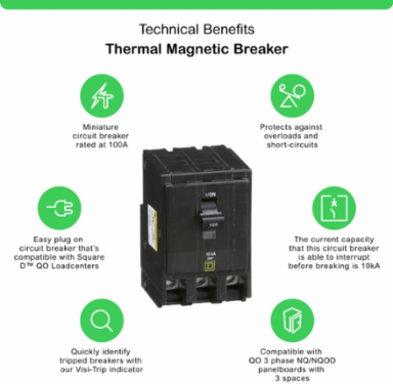

- Rated for a continuous 100-amp load at 240V, this high-amperage thermal-magnetic breaker is the primary solution for protecting large air conditioning units, heavy machinery, and sub-panel feeders. It delivers precision response times to both short circuits and sustained overloads, acting as a critical safeguard for your facility's most expensive electrical assets and sensitive industrial equipment.
- Featuring the industry-leading Visi-Trip indicator, the breaker displays a highly visible red flag in the window the moment it trips. This intuitive design allows maintenance staff and electrical contractors to immediately pinpoint the faulted circuit among dozens of others, drastically reducing diagnostic time and getting your operations back online faster during a power failure.

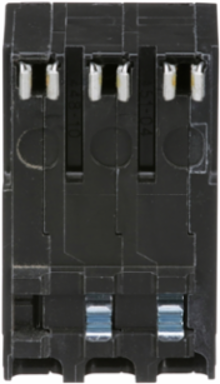

- Utilizing the patented QO plug-on connection system, this breaker snaps directly onto the bus bar without the need for time-consuming bolt-on hardware. This streamlined installation process reduces labor costs during new construction or system retrofits, while the high 10kA interrupting rating (AIR) ensures your electrical system remains fully compliant with modern NEC and UL safety requirements for light industrial and commercial applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

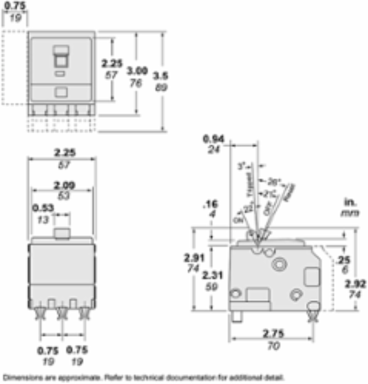

Depth74 mm
Complementary Attributes
- Rated Current
- 100 A
Line Rated Current100 A
Important Information Attributes
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.091220921
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.9157691494
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Persona Type Ids
- LC
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- pressure plate
- Mounting Mode
- plug-in
- Number Of Spaces Required
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.1
- Tightening Torque
- 5.6-5.6 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Width Nominal
- 57 mm
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 498.951 g
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]0.0643826963, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0001246466, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2026-04-14
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Persona Type NamesContractor
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge4 AWG...2/0 AWG copper or aluminium
Circuit Breaker Typestandard
Energy Efficiency OptimizedFalse
Number Of Poles3P
Poles Description3P
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal89 mm
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 20.3757408916
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
