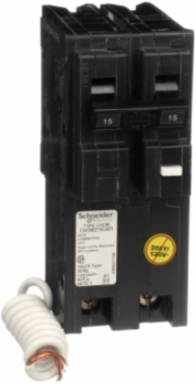

Schneider Electric CHOM215CAFI HOMELINE ARC FAULT CIRCUIT BREAKER 120/240V 15A 2P PLUG-ON CAFI
- MPN: CHOM215CAFI
- UPC: 785901400912
- PPN: SCH-CHOM215CAFI
CAD
$185.42
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Advanced combination arc-fault circuit interrupter (CAFCI) actively monitors your line for both parallel and series arcs—the hazardous, sparking electrical faults that regular standard breakers miss. By continuously checking the electrical signature of the circuit, it instantly cuts power the millisecond an abnormal arc pattern is detected, protecting your family and home from fire risks caused by worn appliance cords, pierced drywall screws, or loose outlet connections.
Features
- Boasting a robust 10,000-amp (10 kAIC) short-circuit interrupting rating and a certified HACR designation, this protective breaker is fully rated to handle the inductive inrush current spikes of heating, air conditioning, and refrigeration compressor equipment. This tailored thermal-magnetic trip curve allows your appliances to cycle on safely without premature tripping, providing heavy-duty overcurrent and short-circuit isolation for your home's major utility systems.
- This module features a factory-installed, pigtail neutral wire that connects directly to your load center's main neutral bar. This high-integrity reference path allows the internal micro-controller to continuously measure current balances with absolute precision, maintaining flawless digital signaling and preventing the common nuisance tripping associated with low-grade or fluctuating household appliances.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/240V AC
- Short-Circuit Current
- 10 kA
- Circuit Breaker Type
- Combination ARC-fault
- Connection Type
- Pigtail Neutral
- Product Certification
- CSA
Amperage15A
Poles2P
Electrical ConnectionPlug-on Pigtail
Number of Spaces Required2
Ambient Air Temperature for Operation104 °F (40 °C)
