Killark

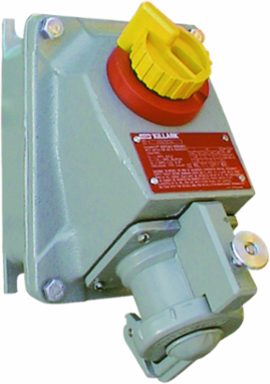

Killark VWSQ3034-S37 30A 3W4P NEMA 4X Mechanically Interlocked Receptacle, 1 Inch Hub, Pin & Sleeve, Aluminum

30A 3W4P NEMA 4X Mechanically Interlocked Receptacle, 1 Inch Hub, Pin & Sleeve, Aluminum
  • MPN: VWSQ3034-S37
  • UPC: 783936399188
  • PPN: HBL-VWSQ3034-S37

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3575.51/ EA

Description

30A 3W4P NEMA 4X Mechanically Interlocked Receptacle - Rotated

Features

  • Compact size and footprint
  • Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
  • Factory Wired Receptacle (Load Side)
  • “Off” position is padlockable for maintenance safety
  • Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.
  • Adjustable mounting lugs
  • Feed-through construction
  • Horsepower-rated internal switch
  • Killark VersaMate® VWSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in standard location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).

Specifications

Specifications

Country of Origin
United States
Amperage Rating
30 A
Number Of Poles
3
Type
Pin & Sleeve
Class Code
D35
Freight Class Code
06316009
Image Actual Or Representative
R
Sub Class Code
D35D260
Material
Aluminum, Copper Free (less than 4/10 of 1%)
Series
VWSQ Series
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Total Units
1 EA
Hub Size1"
Nema Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number Of Wires4
ARRA CompliantContact Manufacturer
Description - Invoice30A 3W4P N4 INTERLOCK RECP -ROTATED
Harmonization Code8537109170
MSDS FlagNo
Hub PatternFeed-Thru
Receptacle TypeMechanically Interlocked
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936399188

Certifications
