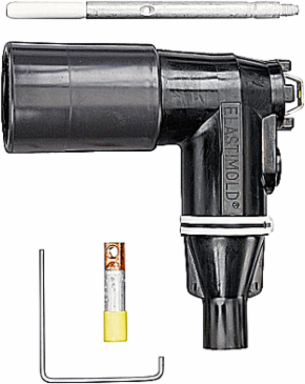

Thomas & Betts 375LR-H2260-S Loadbreak Elbow Connector
- MPN: 375LR-H2260-S
- UPC: 075114341110
- PPN: T-B-375LR-H2260-S
CAD
$884.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 200 Amp, Loadbreak Elbow without Test Point, with Seal. Cable Insulation Diameter 0.850 - 1.050 inches (21.59-26.67mm). Copper Compression Lug. Conductor Size 260 - 3/0 Stranded/Compressed or 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installation Instructions.
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 35kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector
Application35kV, 200 Amp, Loadbreak Connector
Size7.56 inch X 8.70 inch from bottom to center of Installation O-Ring, 3.16 inch Diameter
Conductor RangeConductor Size 260 - 3/0 Stranded/Compressed or 4/0 Solid/Compact.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, Crimp Chart and Installation Instructions.
