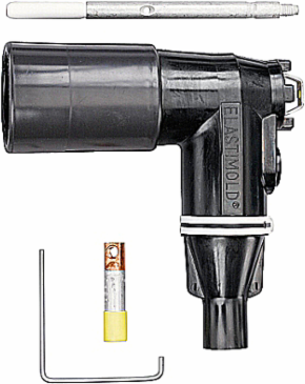

Thomas & Betts 375LR-J5240-S Loadbreak Elbow Connector
- MPN: 375LR-J5240-S
- UPC: 075114257992
- PPN: T-B-375LR-J5240-S
CAD
$823.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 200 Amp, Loadbreak Elbow Connector without Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49. With Sealing Kit
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 35kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Push-in
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 35kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector
Application35 kv, 200 Amp
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
Conductor RangeConductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
