Thomas & Betts 756LR-N0360-S 35KV 600A EMBOW W-SEALING KIT
- MPN: 756LR-N0360-S
- UPC: 075114388054
- PPN: T-B-756LR-N0360-S
- UNSPSC: 39121421
CAD
$1568.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

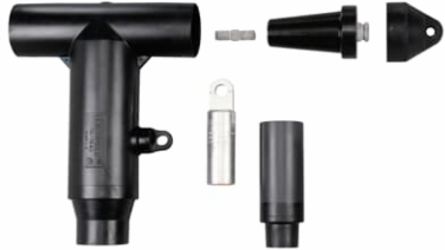

35kV, 600 Amps, Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter). Aluminum Compression Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Conductor Size Compressed/Stranded 650 kcmil or Compacted/Solid 750/800 kcmil. Cold-Shrinkable Jacket Seal Included.
Features
- 35kV, 600 Amp Deadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. S - Cold-Shrinkable Jacket Seal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- Width 12.28 inches, 13.93 inches from Bottom Edge to Center of Installation O-Ring
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes EPDM Rubber
- Environmental Conditions
- Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application35 kv, 600 Amp
StandardANSI/IEEE Standard 386
Conductor Range650 kcmil , 750 to 800 kcmil
Voltage Rating35 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
