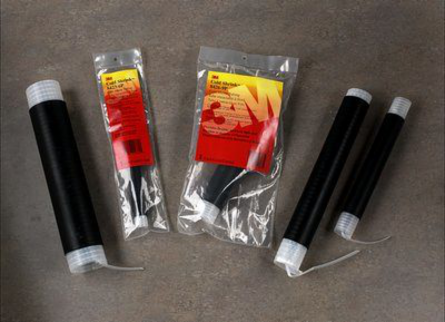

3M 8426-9M Cold Shrink Insulator, 2-4/0 AWG, -40 to 194 F Temperature Range, 10 per Case
- MPN: 8426-9M
- UPC: 054007434368
- PPN: MMM-8426-9M
CAD
$74.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Insulator, 2-4/0 AWG, -40 to 194 F Temperature Range, 10 per Case
Specifications
Key Specifications
| 3M ID | 80611200355 |
|---|---|
| Brand | 3M |
| Case Quantity | 10 |
| Conductor Material | Aluminum, Copper |
| Connector Included | No |
| Elongation | 750 % |
| Inner Diameter After Heat-Shrink | 10.1 mm |
| Maximum Connector Length | 5.0 in |
| Number of Conductors | 1 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Non-shielded, Tape Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Voltage Application | Low Voltage |
| Applications | Insulation, mechanical protection, repair |
|---|---|
| Cable Type | Power Cable |
| Color | Black |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG |
| Dielectric Strength (V/mil) | 365 V/mil |
| Indoor/Outdoor | Both |
| Inner Diameter Before Heat-Shrink | 30.1 mm |
| Maximum Connector Length (metric) | 127.0 mm |
| Product Type | Splice |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Splice Type | Cold Shrink |
| Voltage | 1 kV |
