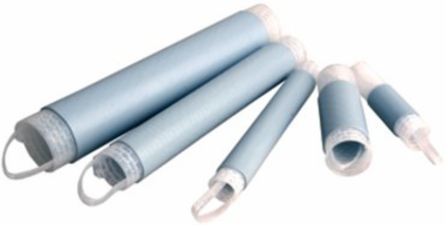

3M 8447-8 3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 - 600 V, Standard, 12 per case

3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 - 600 V, Standard, 12 per case

3M 8447-8 3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 - 600 V, Standard, 12 per case

MPN: 8447-8
UPC: 054007094845
PPN: MMM-8447-8

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$70.15/ EA

Loading add to cart quantity...

Description

3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 - 600 V, Standard, 12 per case

Specifications

Specifications

3M ID: 80610255228

Brand: 3M

Color: Grey

Conductor Sizes: 1/0 AWG, 2/0 AWG, 3/0 AWG

Inner Diameter Before Heat-Shrink: 24.1 mm

Length (Metric): 203 mm

Number of Conductors: 1

Product Type: Cold shrinking

RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Shrink Ratio: 2:1

Trademark: 3M

Voltage Application: Low Voltage

ApplicationsInsulation, mechanical protection, repair

Cable TypeCable with plastic and rubber insulation

Conductor MaterialAluminum, Copper

Inner Diameter After Heat-Shrink12.4 mm

Length0.184

MaterialSilicone

Operating Temperature (Celsius)-55 up to +260°C

RoHS 2011/65/EU CompliantYes

Shielding TypeTape Shield, UniShield®, Wire Shield

Splice TypeCold Shrink

Voltage1 kV
