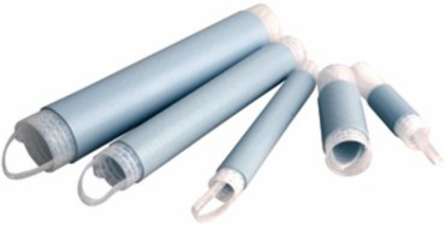

3M 8445-2.5 Cold Shrink Silicone Insulator, 1.7 Inch Length, Insulates 1 to 1/0 AWG Conductors, 0 - 1 kV
- MPN: 8445-2.5
- UPC: 054007094869
- PPN: MMM-8445-2.5
CAD
$37.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Silicone Insulator, 1.7 Inch Length, Insulates 1 to 1/0 AWG Conductors, 0 - 1 kV
Specifications
Key Specifications
| 3M ID | 80610255244 |
|---|---|
| Brand | 3M |
| Color | Grey |
| Conductor Sizes | 1 AWG, 1/0 AWG, 2 AWG |
| Inner Diameter Before Heat-Shrink | 18.3 mm |
| Length (Metric) | 43 mm |
| Number of Conductors | 1 |
| RoHS 2011/65/EU Compliant | Yes |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Trademark | 3M |
| Voltage Application | Low Voltage |
| Applications | Insulation, mechanical protection, repair |
|---|---|
| Cable Type | Power Cable |
| Conductor Material | Aluminum, Copper |
| Inner Diameter After Heat-Shrink | 9.4 mm |
| Length | 1.7 Inch |
| Material | Silicone |
| Product Type | Splice |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
| Splice Type | Cold Shrink |
| Voltage | 1 kV |
