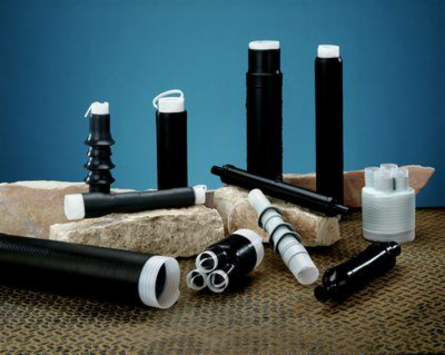

3M 5635K Cold Shrink QT-II Termination Kit, 5-15 kV, 0.84-1.33 Inch O.D., 3 Terminations/Kit
- MPN: 5635K
- UPC: 054007122579
- PPN: MMM-5635K
CAD
$2269.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink QT-II Termination Kit, 5-15 kV, 0.84-1.33 Inch O.D., 3 Terminations/Kit
Specifications
Key Specifications
| 3M ID | 80610123350 |
|---|---|
| BIL | 110 kV |
| Cable Insulation Outside Diameter Range | 0.84-1.33 in |
| Case Quantity | 1 |
| Conductor Sizes | 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil |
| Indoor/Outdoor | Outdoor Skirted |
| Insulation Rejacketing | No |
| Maximum Installed Length | 12.00 in |
| Number of Skirts | 4 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
| Voltage | 15 kV, 5 kV, 8 kV |
| Agency Approvals | IEEE |
|---|---|
| Breakout Boot | No |
| Cable Insulation Outside Diameter Range (metric) | 21.3-33.8 mm |
| Conductor Size by Voltage | (5 kV, 100%) 350-750 kcmil, (5 kV, 133%) 300-750 kcmil, (8 kV, 100%) 300-750 kcmil, (8 kV, 133%) 250-600 kcmil, (15 kV, 100%) 3/0 AWG-500 kcmil, (15 kV, 133%) 2/0 AWG-350 kcmil |
| Family | QT-II |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No, Sunlight Resistant |
| Number of Conductors | 1 |
| Product Series | 5630K |
| RoHS EU Comments | Contact 3M for information |
| Trademark | 3M™ |
