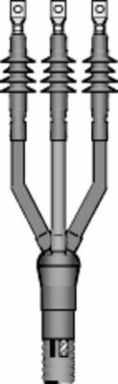

3M 7695-S-4-3G 3M Cold Shrink QT-III Three Conductor Cable Termination Kit 7695-S-4-3G, Tape, Wire and Unishield, 5-25 kV, 1.18-1.51 in Cable Insul. O.D., 3 terminations/kit

3M Cold Shrink QT-III Three Conductor Cable Termination Kit 7695-S-4-3G, Tape, Wire and Unishield, 5-25 kV, 1.18-1.51 in Cable Insul. O.D., 3 terminations/kit
  • MPN: 7695-S-4-3G
  • UPC: 054007436850
  • PPN: MMM-7695-S-4-3G

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

3M Cold Shrink QT-III, 3 Conductor Termination Kit 7695-S-4-3G, 1.18-1.51 in Cable Insulation O.D.

Specifications

Specifications

Voltage
8 kV, 25/28 kV, 5 kV, 15 kV
Cable Insulation Outside Diameter Range (metric)
30.0-38.6 mm
Conductor Sizes
750 kcmil, 250 kcmil, 500 kcmil, 1000 kcmil, 800 kcmil, 700 kcmil, 600 kcmil, 400 kcmil, 300 kcmil, 900 kcmil, 350 kcmil
Number of Skirts
4
Lug/Stem Connector Included in Kit
No
Product Series
7600-3G
Agency Approvals
IEEE
Trademark
3M
Maximum Installed Length
12.25 in
BIL
150 kV
RoHS EU Comments
Contact 3M for information
Indoor/OutdoorOutdoor Skirted
Insulation RejacketingYes
FamilyQT-III
RoHS 2011/65/EU CompliantUndetermined
Cable Insulation Outside Diameter Range1.18-1.52 in
Shielding TypeUniShield, Wire Shield, Tape Shield
Product FamilyQT-III
Breakout BootYes
Number of Conductors3
Maximum Cable Outside Diameter4.50 Inch
