3M

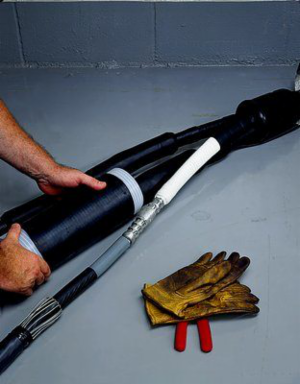

3M QS2012-3T 3M Cold Shrink Transition Splice Kit QS2012-3T, Tape, Wire, UniShield, EP-Lead or XLP-Lead, CN, JCN and PILC, 15 kV, 3/0 AWG-250 kcmil PILC and 4/0 AWG-500 kcmil poly/EPR, 1 kit/case

3M Cold Shrink Transition Splice Kit QS2012-3T, Tape, Wire, UniShield, EP-Lead or XLP-Lead, CN, JCN and PILC, 15 kV, 3/0 AWG-250 kcmil PILC and 4/0 AWG-500 kcmil poly/EPR, 1 kit/case
  • MPN: QS2012-3T
  • UPC: 054007420224
  • PPN: MMM-QS2012-3T

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

3M Cold Shrink Transition Splice Kit QS2012-3T, Tape, Wire, UniShield, EP-Lead or XLP-Lead, CN, JCN and PILC, 15 kV, 3/0 AWG-250 kcmil PILC and 4/0 AWG-500 kcmil poly/EPR, 1 kit/case

Specifications

Specifications

3M ID
80610981633
Case Quantity
1
Color
Red
Connector O.D. Range
0.90 - 1.30 Inch
For Use With
Copper Conductor Only
Inside Diameter
0.7 Inch
Length
4.13 Inch
Maximum Connector Length
5.2 inch (Al), 5.5 inch (Cu)
Maximum Voltage
35 Kilovolt
Outside Diameter
0.88 Inch
PILC Cable Conductor Sizes
250 AWG, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG
Poly/EPR Cable Conductor Sizes (metric)
120 - 240 mm²
Poly/EPR Cable Insulation O.D. Range (metric)
22.0 - 34.6 mm
Product Technology
Cold Shrink
RoHS 2011/65/EU Compliant
No
Shielding Type
PILC
Trademark
Scotchlok
Barrel StyleLong Barrel
China RoHS - Below MCVUndetermined
Connector Base MetalCopper
Connector O.D. Range (metric)22.9-33.0 mm
Indoor/OutdoorBoth
Inside Diameter (metric)17.8 mm
Length (Metric)104.8 mm
Maximum Connector Length (metric)132 mm (Al), 140 mm (Cu)
Number of Conductors3
Outside Diameter (metric)22.2 mm
Poly/EPR Cable Conductor Sizes250 kcmil, 350 kcmil, 4/0 AWG, 500 kcmil
Poly/EPR Cable Insulation O.D. Range0.88 - 1.36 Inch
Product SeriesQS2000-3T
Product TypePILC Splice
RoHS EU CommentsContact 3M for information
Splice TypePILC Trifurcating
Voltage15 kV
