3M

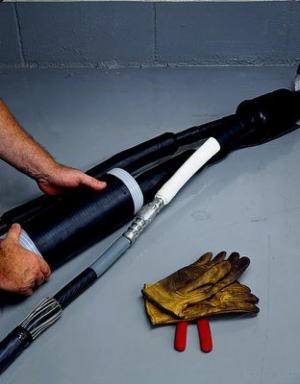

3M QS2013-3T 3M Cold Shrink Transition Splice Kit QS2013-3T, Tape Shielded, Wire Shielded, UniShield, EP-Lead or XLP-Lead, Concentric Neutral, Jacketed Concentric Neutral, 15 kV, 1 per case

3M Cold Shrink Transition Splice Kit QS2013-3T, Tape Shielded, Wire Shielded, UniShield, EP-Lead or XLP-Lead, Concentric Neutral, Jacketed Concentric Neutral, 15 kV, 1 per case
  • MPN: QS2013-3T
  • UPC: 054007420231
  • PPN: MMM-QS2013-3T

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

3M Cold Shrink Transition Splice Kit QS2013-3T, Tape Shielded, Wire Shielded, UniShield, EP-Lead or XLP-Lead, Concentric Neutral, Jacketed Concentric Neutral, 15 kV, 1 per case

Specifications

Specifications

3M ID
80610981641
China RoHS - Below MCV
Undetermined
Connector O.D. Range
1.10 - 1.66 Inch
Indoor/Outdoor
Both
Maximum Connector Length (metric)
165 mm (Al), 190 mm (Cu)
PILC Cable Conductor Sizes
400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil
Poly/EPR Cable Conductor Sizes (metric)
240 - 500 mm²
Poly/EPR Cable Insulation O.D. Range (metric)
28.4 - 43.2 mm
Product Technology
Cold Shrink
RoHS 2011/65/EU Compliant
Undetermined
Shielding Type
PILC
Trademark
3M
Case Quantity1
ColorBlack
Connector O.D. Range (metric)28.0-42.0 mm
Maximum Connector Length6.5 inch (Al), 7.5 inch (Cu)
Number of Conductors3
Poly/EPR Cable Conductor Sizes1000 kcmil, 500 kcmil, 750 kcmil
Poly/EPR Cable Insulation O.D. Range1.12 - 1.70 Inch
Product SeriesQS-2000-3T & QS-2000-3T-WS Series
Product TypePILC Splice
RoHS EU CommentsContact 3M for information
Splice TypePILC Trifurcating
Voltage15 kV
