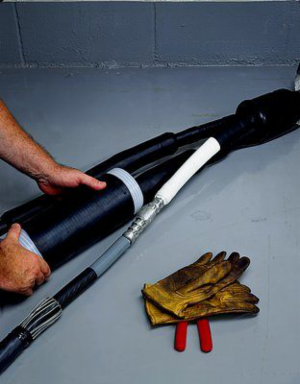

3M QS2012-3T-WS Cold Shrink Transition Splice Kit, 15 kV, 3/0 AWG-500 kcmil, 1 Kit/Case
- MPN: QS2012-3T-WS
- UPC: 054007042112
- PPN: MMM-QS2012-3T-WS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Transition Splice Kit, 15 kV, 3/0 AWG-500 kcmil, 1 Kit/Case
Specifications
Key Specifications
| 3M ID | 80610982953 |
|---|---|
| China RoHS - Below MCV | Undetermined |
| Connector O.D. Range (metric) | 17.8 - 25.8 mm |
| Maximum Connector Length (metric) | 132 mm (Al), 140 mm (Cu) |
| PILC Cable Conductor Sizes | 250 kcmil, 3/0 AWG, 4/0 AWG |
| Poly/EPR Cable Conductor Sizes (metric) | 120 - 240 mm² |
| Poly/EPR Cable Insulation O.D. Range (metric) | 17.8 - 27.2 mm |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Splice Type | PILC Trifurcating |
| Voltage | 15 kV |
| Case Quantity | 1 |
|---|---|
| Connector O.D. Range | 0.70 - 1.02 Inch |
| Maximum Connector Length | 5.2 inch (Al), 5.5 inch (Cu) |
| Number of Conductors | 3 |
| Poly/EPR Cable Conductor Sizes | 250 kcmil, 350 kcmil, 4/0 AWG, 500 kcmil |
| Poly/EPR Cable Insulation O.D. Range | 0.70 - 1.07 Inch |
| Product Series | QS-2000-3T & QS-2000-3T-WS Series |
| Product Type | PILC Splice |
| Shielding Type | PILC |
| Trademark | 3M |
