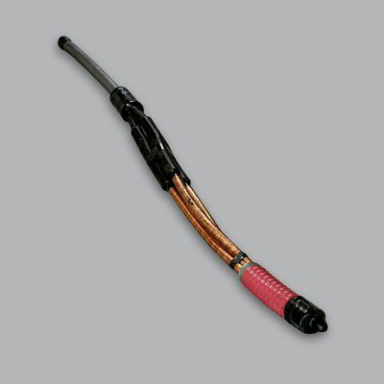

3M QS2013-3T-3C Cold Shrink Transition Splice Kit, 15 kV, 1.12-1.70 Inch O.D., 3 Conductors
- MPN: QS2013-3T-3C
- UPC: 054007432470
- PPN: MMM-QS2013-3T-3C
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cold Shrink Transition Splice Kit, 15 kV, 1.12-1.70 Inch O.D., 3 Conductors
Specifications
Key Specifications
| 3M ID | 80610982938 |
|---|---|
| China RoHS - Below MCV | Undetermined |
| Connector O.D. Range | 1.10 - 1.66 Inch |
| Indoor/Outdoor | Both |
| Maximum Connector Length (metric) | 165 mm (Al), 190 mm (Cu) |
| PILC Cable Conductor Sizes | 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil |
| Poly/EPR Cable Conductor Sizes (metric) | 240 - 325 mm² |
| Poly/EPR Cable Insulation O.D. Range (metric) | 28.4 - 43.2 mm |
| Product Technology | Cold Shrink |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | PILC |
| Trademark | 3M |
| Case Quantity | 1 |
|---|---|
| Color | Black |
| Connector O.D. Range (metric) | 28 - 42 mm |
| Maximum Connector Length | 6.5 inch (Al), 7.5 inch (Cu) |
| Number of Conductors | 3 |
| Poly/EPR Cable Conductor Sizes | 500 kcmil, 750 kcmil |
| Poly/EPR Cable Insulation O.D. Range | 1.12 - 1.70 Inch |
| Product Series | QS-2013-3T-3C Series |
| Product Type | PILC Splice |
| RoHS EU Comments | Contact 3M for information |
| Splice Type | Inline PILC Transition |
| Voltage | 15 kV |
