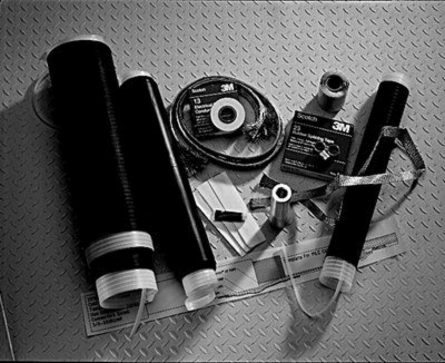

Cold Shrink Splice Kit, 15 kV, 1.10-1.66 Inch O.D., 400-1000 kcmil PILC
3M

3M QS2013T Cold Shrink Splice Kit, 15 kV, 1.10-1.66 Inch O.D., 400-1000 kcmil PILC

  • MPN: QS2013T
  • UPC: 054007505556
  • PPN: MMM-QS2013T

CAD

$3939.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Cold Shrink Splice Kit, 15 kV, 1.10-1.66 Inch O.D., 400-1000 kcmil PILC

Specifications

Key Specifications

3M ID
80610735948
Case Quantity
1
Color
Gray
Connector O.D. Range
1.10 - 1.66 Inch
For Use With
Aluminum or Copper Conductors
Inside Diameter
0.2 Inch
Length
1.62 Inch
Maximum Connector Length
6.5 inch (Al), 7.5 inch (Cu)
Maximum Voltage
35 Kilovolt
Outside Diameter
0.34 Inch
PILC Cable Conductor Sizes
1000 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil
PILC Cable Insulation O.D. Range (metric)
24.9 - 39.6 mm
Poly/EPR Cable Conductor Sizes (metric)
240 - 500 mm²
Poly/EPR Cable Insulation O.D. Range (metric)
28.4 - 43.2 mm
Product Technology
Cold Shrink
RoHS 2011/65/EU Compliant
No
Shielding Type
PILC
Trademark
Scotchlok
Barrel StyleStandard Barrel
China RoHS - Below MCVUndetermined
Connector Base MetalAluminum
Connector O.D. Range (metric)28 - 42 mm
Indoor/OutdoorBoth
Inside Diameter (metric)5.1 mm
Length (Metric)41.1 mm
Maximum Connector Length (metric)165 mm (Al), 190 mm (Cu)
Number of Conductors1
Outside Diameter (metric)8.8 mm
PILC Cable Insulation O.D. Range0.98 - 1.56 Inch
Poly/EPR Cable Conductor Sizes1000 kcmil, 500 kcmil, 750 kcmil
Poly/EPR Cable Insulation O.D. Range1.12 - 1.70 Inch
Product SeriesQS2000T
Product TypePILC Splice
RoHS EU CommentsContact 3M for information
Splice TypeInline PILC Transition
Voltage15 kV
