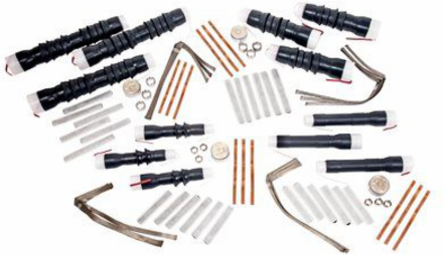

3M 7696-T-150-3-RJS 3M Three Conductor Termination Kits QT-III 7600 Series 7696-T-150-3-RJS
- MPN: 7696-T-150-3-RJS
- UPC: 051128595336
- PPN: MMM-7696-T-150-3-RJS
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
3M Three Conductor Termination Kits QT-III 7600 Series 7696-T-150-3-RJS
Specifications
Key Specifications
| 3M ID | 80611471923 |
|---|---|
| BIL | 150 kV |
| Cable Insulation Outside Diameter Range (metric) | 38.8-46.0mm |
| Conductor Sizes | 1000 kcmil, 350 kcmil, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil |
| Indoor/Outdoor | Indoor |
| Insulation Rejacketing | Yes |
| Maximum Installed Length | Termination only (not including RJS sleeving or Break-out boot: 21.5") |
| Number of Conductors | 3 |
| Product Series | 3-RJS |
| RoHS EU Comments | Contact 3M for information |
| Voltage | 15 kV, 25 kV, 35 kV |
| Agency Approvals | IEEE |
|---|---|
| Cable Insulation Outside Diameter Range | 1.53-1.81 in |
| Case Quantity | 1 |
| Family | QT-III |
| Insulation Level | 100%, 133% |
| Lug/Stem Connector Included in Kit | No |
| Maximum Installed Length (metric) | Termination only (not including RJS sleeving or Break-out boot: 546mm) |
| Number of Skirts | 0 |
| RoHS 2011/65/EU Compliant | Undetermined |
| Shielding Type | Tape Shield, UniShield®, Wire Shield |
