Documentation & Downloads

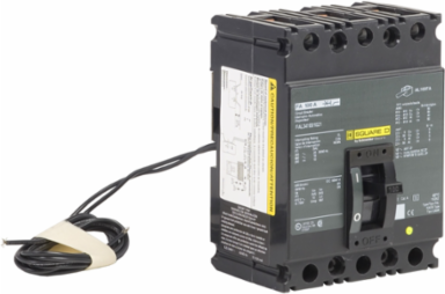

Square D FAL341001021 Circuit breaker, FA, 480V, 100A, 3 pole, shunt trip
- MPN: FAL341001021
- UPC: 785901129042
- PPN: SCH-FAL341001021
CAD
$2090.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit breaker, FA, 480V, 100A, 3 pole, shunt trip
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.13 in
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Electrical Connection
- lugs, load, lugs, line
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1304
- China Rohs In Scope
- No
- Circuit Breaker Application
- HACR rated
- Magnetic Tripping Current
- 1700-1700 A
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Terminal Identifier
- AL100FA
- Pep Code
- ENVPEP1410005EN
- Width Nominal
- 4.5 in
- Package Weight(Lbs)
- 2.268 kg
Certificate AgencyUL Listed, CSA
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
Product Kit IdentifierN
Magnetic Hold Current900 A
Mounting Modeunit mount
Phase ConnectionABC
Product Or Component Typecircuit breaker
Sustainable PackagingNo
Trip Unit Technologythermal-magnetic
Height Nominal6.4 in
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1410005EN
- Pep Code
- ENVPEP1410005EN
Mercury FreeYes
Eu Rohs DirectiveCompliant
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
