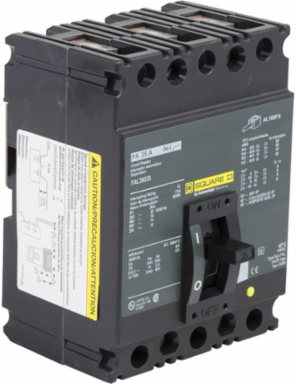

Square D FAL36035 Circuit breaker, FA, 600V, 35A, 3 pole
- MPN: FAL36035
- UPC: 785901529743
- PPN: SCH-FAL36035
- UNSPSC: 39121616
CAD
$1163.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit breaker, FA, 600V, 35A, 3 pole
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 4.13 in |
|---|
Complementary Attributes
| Line Rated Current | 35 A |
|---|
Important Information Attributes
| Electrical Connection | lugs, load, lugs, line |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1304 |
| China Rohs In Scope | No |
| Circuit Breaker Application | HACR rated |
| Magnetic Tripping Current | 850-850 A |
| Number Of Poles | 3P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Terminal Identifier | AL100FA |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 4.5 in |
| Warranty In Months | 18 |
| Certificate Agency | CSA, UL Listed |
|---|---|
| Local Publishable Date | 2025-07-09 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| Product Kit Identifier | N |
| Magnetic Hold Current | 400 A |
| Mounting Mode | unit mount |
| Phase Connection | ABC |
| Product Or Component Type | circuit breaker |
| Sustainable Packaging | No |
| Trip Unit Technology | thermal-magnetic |
| Height Nominal | 6.4 in |
| Nbr. Of Units In Pkg. | 1 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Environmental Disclosure | ENVPEP1410005EN |
| Pep Code | ENVPEP1410005EN |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Compliant |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
ETIM
| ETIM 8 | EC000228 |
|---|---|
| ETIM 10 | EC000228 |
| ETIM 9 | EC000228 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
