Hubbell 3104MSBU1 Steel Gangable Device Box, 2-1/2 Inch Deep, 16 Cu. In. for 2-3/8 & 3-5/8 Inch Studs
- MPN: 3104MSBU1
- UPC: 626463021057
- PPN: HBL-3104MSBU1
CAD
$6.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

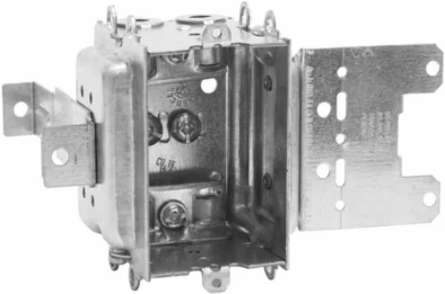

Steel Gangable Device Box, 2-1/2 Inch Deep, 16 Cu. In. for 2-3/8 & 3-5/8 Inch Studs
Features
- Engineered with an exact 0.9375-inch bracket setback, this device box is specifically designed to sit perfectly flush with two layers of 1/2-inch drywall. This precise spacing saves dry-wall taping and mounting layout time during commercial construction by ensuring switches and receptacles align seamlessly with the finished wall profile without the need for box extenders.
- Equipped with a heavy-duty MSB steel stud bracket, this electrical box mounts firmly onto standard 2-3/8 in and 3-5/8 in steel studs. The high-stability bracket architecture prevents the unit from deflecting or shifting inward when users push plugs into standard wall receptacles, providing a rock-solid installation that satisfies demanding commercial building inspections.
- Featuring a welded, gangable steel construction, this 1-gang electrical enclosure can be easily disassembled and combined with matching units on the job site. This modular layout allows field electricians to quickly build customized 2-gang, 3-gang, or multi-gang configurations out of standard stock, drastically reducing the variety of specialized boxes needed in your inventory.
- Outfitted with four universal cable end clamps, this 2.5-inch deep, 16 cubic-inch enclosure provides a secure mechanical grip for both standard NMD90 non-metallic sheathed lines and AC90 armored cable. The clean cable pryout paths facilitate smooth, drag-free wire entries while shielding underlying conductor insulation from sharp edge nicks during wire pulling.
Documentation & Downloads
Specifications
Additional
- Capacity
- 16 Cu. In.
- Depth
- 2.5 in
- Number of Gangs
- 1-Gang
- Wiring System
- Non-Metallic Sheathed (NMD), Armoured Cable (AC) 14/2 8/3
- Weight
- 0.7 lb
- Bracket Type
- MSB, for Steel Stud
- Compliance
- CSA Certified
Stud Size Compatibility2-3/8 in, 3-5/8 in
Bracket Setback0.9375 in
Ends Cable4
Raised GroundYes
MaterialSteel
Drawn or WeldedWelded
ColorGray
