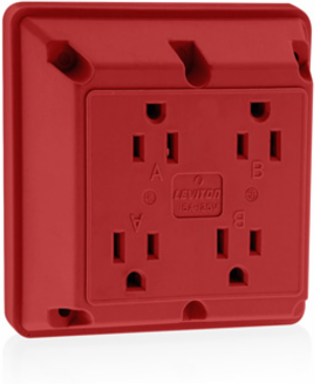

Leviton 1254-R 4-in-1 Quadruplex Receptacle Outlet, 15 Amp, 125 Volt, Heavy-Duty, Red

MPN: 1254-R
UPC: 078477830468
PPN: LEV-1254-R

$62.87

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

4-in-1 Quadruplex Receptacle Outlet, 15 Amp, 125 Volt, Heavy-Duty, Red

Documentation & Downloads

Specifications

Standards and Certifications

Warranty	10-Year Limited
CSA C22.2 No. 42	File 152105
ANSI	C-73

NOM	057
UL498	File E13399
NEMA	WD-1 WD-6

Material Specifications

Line Contacts	Phosphor Bronze
Color	Red
Grounding Screw	Plated Steel
Body Material	Nylon

Face Material	Nylon
Strap Material	Galvanized Steel with Riveted Ground Contacts
Terminal Screws	Plated Brass

Mechanical Specifications

Terminal ID	Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.	14-12 AWG
Termination	Side Wire

Product ID	Ratings are permanently marked on device
Torque Range	12-14 inch pounds

Product Features

NEMA	5-15R
Brand	4-in-1
Grade	Heavy-Duty Industrial Specification Grade

Color	Red
Country Of Origin	Mexico
Device Type	Quadruplex Receptacle Outlet

Environmental Specifications

Flammability	Rated V-2 per UL 94

Operating Temperature	-40°C to 60°C

Electrical Specifications

Amperage	15 A
Dielectric Voltage	Withstands 2000V per UL498
Pole	2
Voltage	125 VAC

Wire	3
Temperature Rise	Max 30C after 50 cycles OL at 150 percent rated current
Current Limiting	Full Rated Current
Grounding	Grounding

AC Horsepower Ratings

At Rated Voltage	1/2 HP
