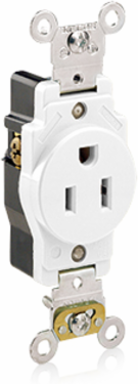

Leviton 5261-W 15 Amp Industrial Grade Self-Grounding Single Receptacle Outlet, NEMA 5-15R, White
- MPN: 5261-W
- UPC: 078477848821
- PPN: LEV-5261-W
CAD
$26.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Current Limiting
- Full Rated Current
- Temperature Rise
- Max 30C after 250 cycles OL at 200% rated current
- Wires
- 3
- Grounding
- Self-Grounding
- Terminal Accommodation
- 14-10 AWG
- Material
- Thermoplastic Nylon
- Clamp Nuts Material
- Galvanized Steel
- Grounding Screw Material
- Plated Steel
- Strap Material
- Zinc-Plated Steel
- Dielectric Voltage Withstand
- 2000 V per UL498
- Warranty
- 10-Year Limited
- Country of Origin
- Please Contact Customer Service
Voltage125 VAC
Horsepower Rating1/2 HP
Poles2
NEMAWD-6
Screw Terminal Torque14-18 in-lbs
TerminationBack or Side Wire
Face MaterialThermoplastic Nylon
Ground Clips MaterialBrass
Line Contacts MaterialBrass Triple-Wipe
Flammability RatingV-2 per UL 94
ComplianceROHS, ANSI C-73, CSA C22.2 No. 42, NOM 057, UL Fed Spec WC-596, UL498
ColorWhite
