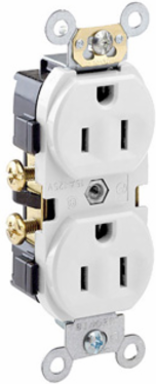

Leviton CR15-W 15 Amp Commercial Grade Duplex Receptacle Outlet, Self-Grounding, NEMA 5-15R
- MPN: CR15-W
- UPC: 078477815205
- PPN: LEV-CR15-W
CAD
$2.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| AC Horsepower Rating | 1/2 HP |
| Wires | 3 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Wire | 3 |
| Grounding | Self-Grounding |
| Grade | Commercial Specification Grade |
| Strap Material | Zinc-Plated Steel |
| Face Material | Nylon |
| Grounding Screw Material | Steel 8-32 |
| Terminal Screws Material | Steel 8-32 |
| UL498 | File E13399 |
| ANSI | C-73 |
| RoHS Compliant | True |
| Country of Origin | United States |
| Voltage | 125 VAC |
|---|---|
| Poles | 2 |
| Operating Temperature | -40 C to 60 C |
| Current Limiting | Full Rated Current |
| Terminal Accommodation | 14-10 AWG |
| NEMA | WD-1 & WD-6 |
| Screw Terminal Torque | 14-18 in-lbs |
| Body Material | Nylon |
| Ground Clips Material | Brass-Plated |
| Line Contacts Material | Brass Double Wipe .031 Thick |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| CSA C22.2 No. 42 | File 152105 |
| NOM | 057 |
| Color | White |
