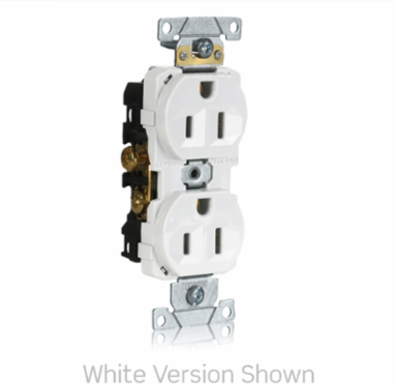

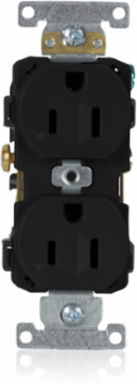

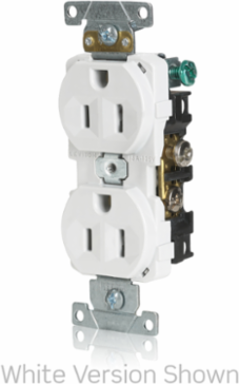

Leviton CR15-E 15 Amp Duplex Receptacle, Commercial Grade, Self-Grounding, NEMA 5-15R
- MPN: CR15-E
- UPC: 078477037409
- PPN: LEV-CR15-E
CAD
$2.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Poles
- 2
- AC Horsepower Rating
- 1/2 HP
- Temperature Rise
- Max 30°C after 100 cycles OL at 150% rated current
- Terminal Accommodation
- 14-10 AWG
- Grounding
- Self-Grounding
- Face Style
- Indented Face
- Ground Clips
- Brass-Plated
- Terminal Screws
- Steel 8-32
- Strap Material
- Zinc-Plated Steel
- Face Material
- Nylon
- Dielectric Voltage
- Withstands 2000 V per UL498
- UL498
- File E13399
- ANSI
- C-73
- RoHS Compliant
- True
- Warranty
- 10-Year Limited
Voltage125 VAC
Wires3
Operating Temperature-40°C to 60°C
Screw Terminal Torque14-18 in-lbs
TerminationSide Wire
GradeCommercial Specification Grade
Line ContactsBrass Double Wipe .031 Thick
Grounding ScrewSteel 8-32
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Body MaterialNylon
Flammability RatingV-2 per UL94
NEMAWD-1 & WD-6
CSA C22.2 No. 42File 152105
NOM057
Country of OriginUnited States
Device TypeDuplex Receptacle Outlet
