Leviton 5490-IGB 20 Amp Isolated Ground Quadruplex Receptacle Outlet, 125 Volt, NEMA 5-20R
Leviton 5490-IGB 20 Amp Isolated Ground Quadruplex Receptacle Outlet, 125 Volt, NEMA 5-20R
- MPN: 5490-IGB
- UPC: 078477851418
- PPN: LEV-5490-IGB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$177.66/ EA
Description

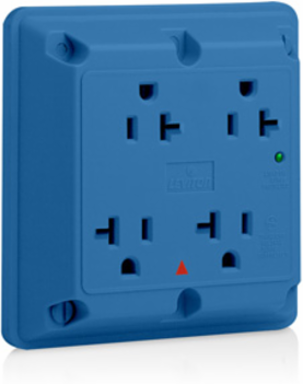

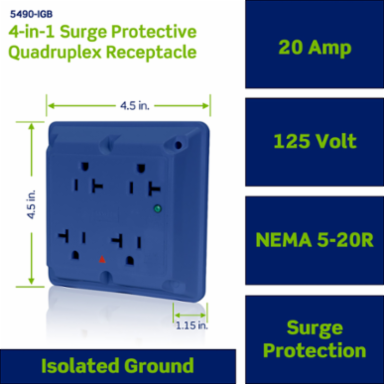

4-in-1 Surge Protective Isolated Ground Quadruplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire - Blue
Features

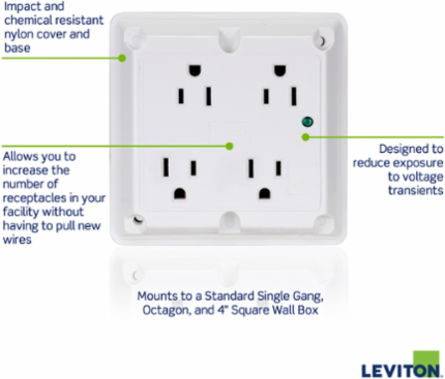

- Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
- Durable - Impact and chemical resistant nylon cover and base
- Easy Installation - Termination anchor holes for easy conductor wiring
- Reliable - 5-Year Limited Warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 WD-6
- UL Fed Spec WC-596
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL498File E13399
Performance Data
- Diagnostics
- Indicator Light
- MCOV
- 150V rms
- Noise Rejection
- -30dB at 500kHz-300MHz
- Short Circuit Current Rating
- 5kA
- VPR
- L-N:500V, L-G:600V, N-G:500V
Joules Rating720
Max Surge Current L-N24kA
Nominal Discharge Current Rating3kA
UL1449 Impulse 6kV/500A L-N330V
Material Specifications
- Body Material
- Nylon
- Grounding Screw
- Steel 8-32 w/ 12AWG Green 8 Inch Pigtail
- Terminal Screws
- Brass 8-32
Face MaterialNylon
Line ContactsPhosphor Bronze
YokeZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, White-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Brand
- 4-in-1
- Device Type
- Quadruplex Receptacle
- Function

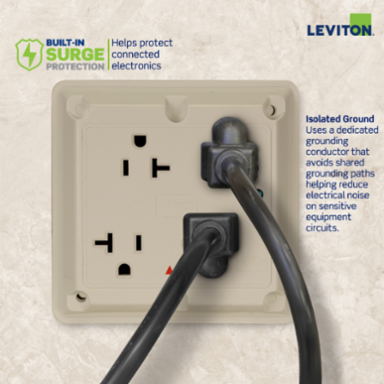

- Surge Protective Isolated Ground
- Grounding
- Isolated Ground
- Standards and Certifications
- UL/CSA
- Warranty
- 5-Year Limited
ColorBlue
FeatureSurge
GradeCommercial Specification Grade
NEMA5-20R
Strap MaterialSteel
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Temperature Rise
- Max 30C after 50 cycles OL at 150 percent rated current
- Wire
- 3
Current LimitingFull Rated Current
Pole2
Voltage125 VAC
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
