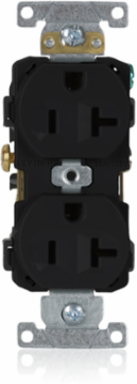

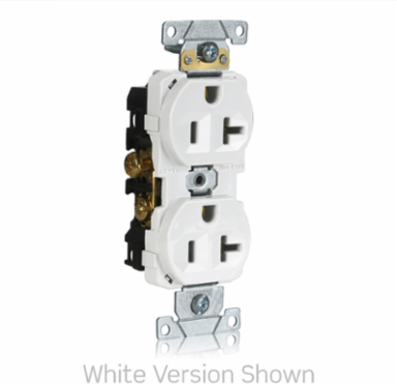

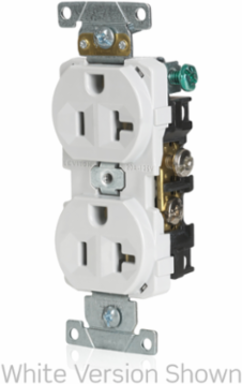

Leviton CR20-E 20 Amp Duplex Receptacle Outlet, Commercial Grade, NEMA 5-20R, Self-Grounding, Black
Leviton CR20-E 20 Amp Duplex Receptacle Outlet, Commercial Grade, NEMA 5-20R, Self-Grounding, Black
- MPN: CR20-E
- UPC: 078477977521
- PPN: LEV-CR20-E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$3.00/ EA
Description
Duplex Receptacle Outlet, Commercial Specification Grade, Indented Face, 20 Amp, 125 Volt, Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - Black
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
- Warranty
- 10-Year Limited
Applicable StandardsUL 498| Fed Spec W-C-595G| CSA C22.2 No. 42
NOM057
Material Specifications
- Body Material
- Polypropylene
- Ground Clips
- Brass
- Line Contacts
- Brass .031 Thick
- Terminal Screws
- Steel 8-32
Face MaterialNylon
Grounding ScrewSteel 8-32
Strap MaterialZinc-Plated Steel
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal Accom.
- 14-10 AWG
- Termination
- Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Color
- Black
- Feature 4
- Indented Face
Device TypeDuplex Receptacle Outlet
GradeCommercial Specification Grade
Environmental Specifications
- Flammability
- Rated V-2 per UL94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
