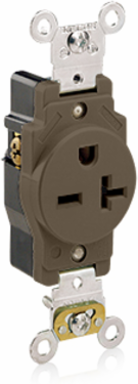

Leviton 5461 20 Amp Industrial Grade Self-Grounding Single Receptacle Outlet, 250 Volt, NEMA 6-20R
- MPN: 5461
- UPC: 078477498903
- PPN: LEV-5461
CAD
$20.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

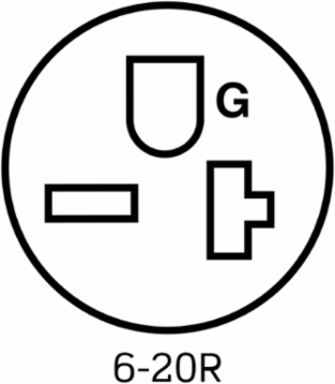

Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 250 Volt, Back or Side Wire, NEMA 6-20R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| AC Horsepower Rating | 2 HP |
| Wire | 3 |
| Grade | Heavy-Duty Industrial Specification Grade |
| Current Limiting | Full Rated Current |
| Terminal Accommodation | 14-10 AWG |
| Termination | Back or Side Wire |
| NEMA | WD-6 |
| Face Material | Thermoplastic Nylon |
| Ground Clips | Brass |
| Line Contacts | Brass Triple-Wipe |
| Terminal Screws | Plated Brass |
| Operating Temperature Range | -40 C to 60 C |
| CSA C22.2 No. 42 | File 152105 |
| UL Fed Spec WC-596 | File E13399 |
| NOM | 057 |
| Country of Origin | Please Contact Customer Service |
| Warranty | 10-Year Limited |
| Voltage | 250 VAC |
|---|---|
| Pole | 2 |
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200% rated current |
| Dielectric Voltage Withstand | 2000V per UL498 |
| Torque Range | 14-16 inch pounds |
| Device Type | Single Receptacle Outlet |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts | Galvanized Steel |
| Grounding Screw | Plated Steel |
| Strap Material | Zinc-Plated Steel |
| Flammability Rating | V-2 per UL 94 |
| RoHS Compliant | True |
| UL498 | File E13399 |
| ANSI | C-73 |
| Color | Brown |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
