Intermatic GM40AV Autovoltage 40 A Time Switch, 120-277 VAC DPDT
- MPN: GM40AV
- UPC: 078275123755
- PPN: INT-GM40AV
- UNSPSC: 39122208
CAD
$125.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

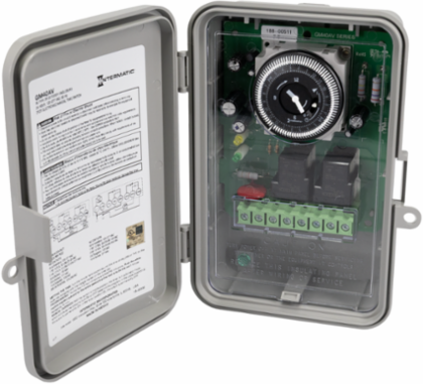

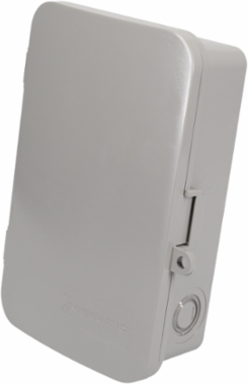

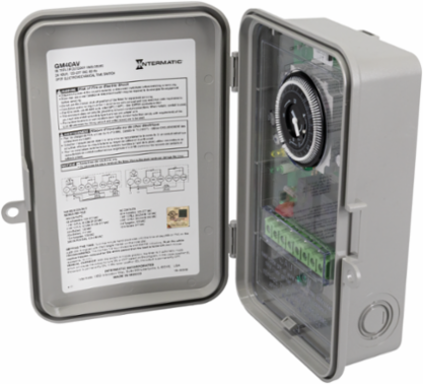

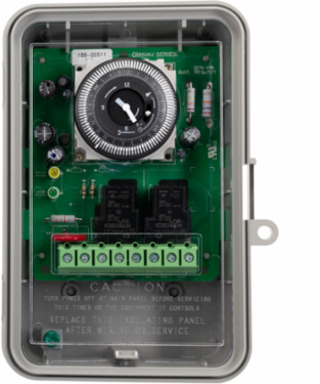

The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Features
- Auto-voltage selection 120 VAC-277 VAC
- Captive trippers - trippers cannot be lost
- 40 A rating
- Self-recharging battery backup, "Q" models feature 72-hour carry-over
- Power and status LED indicators
- 24-Hour or 7-day models available
- Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on "W" models
- DPDT switching configuration standard (2 NO and 2 NC Contacts)
- Manual three-way ON/OFF/AUTO override switch

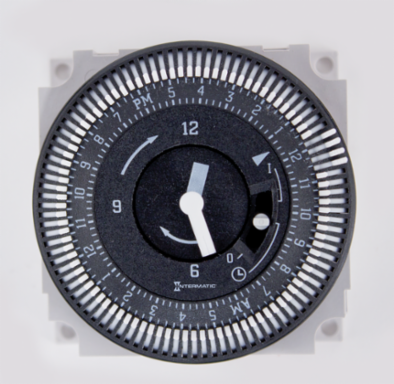

- Easy-to-read clock face
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- Auto-Voltage 120-277 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
- Width
- 6.609 in
- Country of Origin
- Mexico
Warranty Period1-Year limited
ApplicationsAeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
Height8.875 in
Depth3 in
