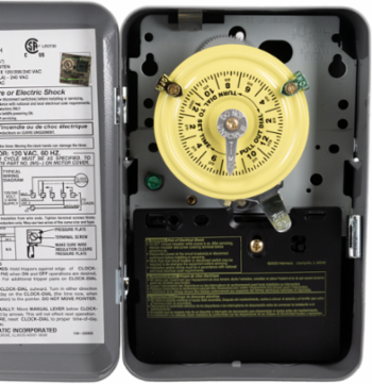

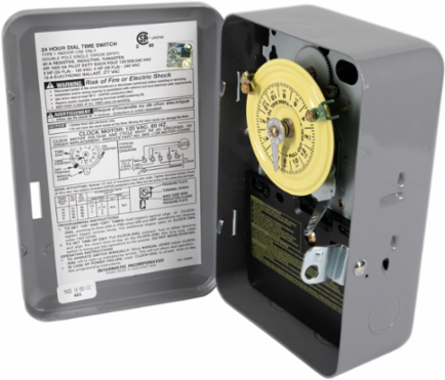

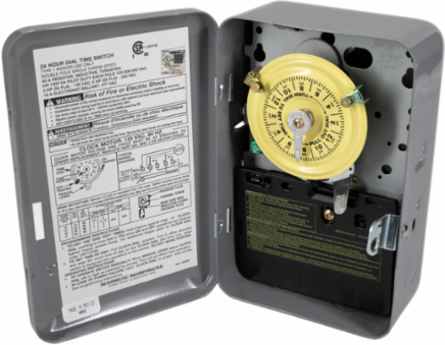

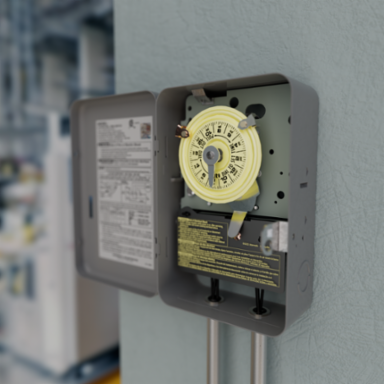

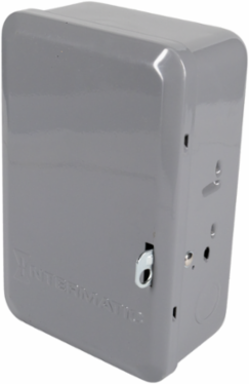

Intermatic T101 24-Hour Mechanical Time Switch, 120 VAC, SPST, Indoor, 40 A Capacity
- MPN: T101
- UPC: 078275000018
- PPN: INT-T101
- UNSPSC: 39122208
CAD
$106.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features
- Direct 24-hour control of most loads.
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour.
- Manual override.
- One ON and one OFF tripper included.
Documentation & Downloads
Specifications
Additional
| Voltage | 120 VAC, 60 Hz |
|---|---|
| Maximum ON/OFF Operations | 12 per day |
| Load Rating Tungsten | 40 A, 120-240 VAC, 60 Hz |
| Load Rating Inductive | 40 A, 120-240 VAC, 60 Hz |
| Load Rating Pilot Duty | 1000 VA, 120-240 VAC, 60 Hz |
| Minimum ON/OFF Time | 1 hour |
| Manual Override | Yes |
| Input Voltage Rating Range | 120 VAC, 60 Hz |
| Maximum Power Consumption | 3 W |
| Wire Size Min | #14 AWG |
| Enclosure Type | Indoor metal |
| Country of Origin | Mexico |
| Color | Gray |
| Current Capacity | 40 A |
|---|---|
| Number of Circuits | 1 |
| Load Rating Electronic Ballast | 16 A, 120 VAC |
| Load Rating Resistive | 40 A, 120-240 VAC, 60 Hz |
| Motor Load Rating | 2 HP @ 120 VAC, 5 HP @ 240 VAC |
| Operation Mode | 24 hour |
| Switch Type | SPST |
| Temperature Range | -40 F to 130 F |
| Dimensions (H x W x D) | 7.875 x 5.125 x 3.437 in |
| Wire Size Max | #8 AWG |
| Weight | NA |
| Compliance | UL Listed, CSA Certified (cULus, cCSAus) |
| Warranty Period | 1-Year limited |
