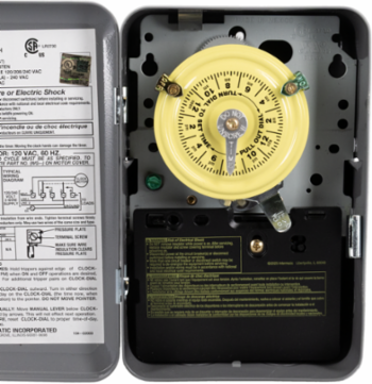

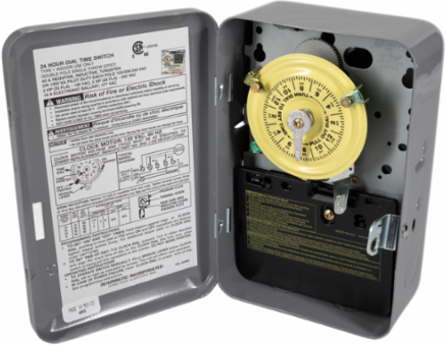

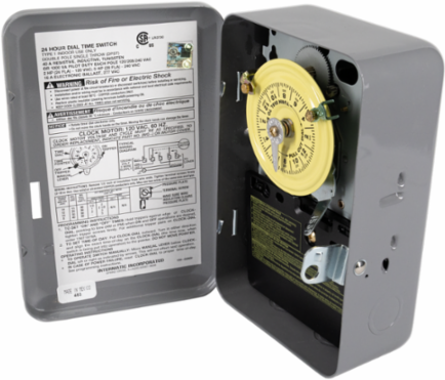

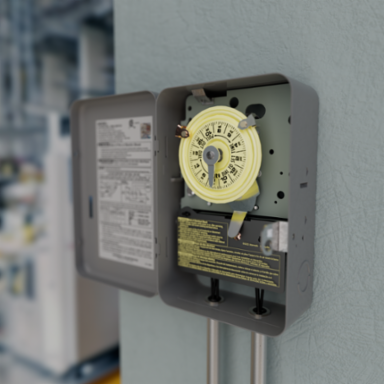

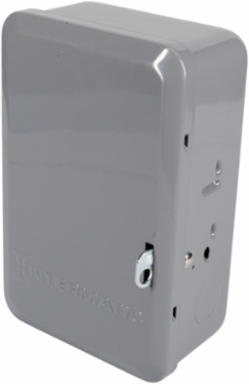

Intermatic T103 24-Hour DPST Mechanical Time Switch 120 VAC 40A
- MPN: T103
- UPC: 078275000049
- PPN: INT-T103
- UNSPSC: 39122208
CAD
$121.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC, 60 Hz
- Maximum ON/OFF Operations
- 12 per day
- Load Rating Electronic Ballast
- 16 A, 120-277 VAC
- Load Rating Motor
- 2 HP, 24 FLA @ 120 VAC; 5 HP, 28 FLA @ 240 VAC
- Load Rating Pilot Duty
- 1000 VA, 120-240 VAC, 60 Hz
- Temperature Range
- -40 °F to 130 °F (-40 °C to 54 °C)
- Switch Type
- DPST
- Dimensions (H x W x D)
- 7.875 x 5.125 x 3.437 in
- Wire Size Max
- #8 AWG
- Number of Trippers Included
- 1 ON, 1 OFF
- Color
- Gray
- Compliance
- cULus, cCSAus, LED compatible
Amperage40 A per pole
Load Rating Tungsten40 A, 120-240 VAC, 60 Hz
Load Rating Inductive40 A, 120-240 VAC, 60 Hz
Load Rating Resistive40 A, 120-240 VAC, 60 Hz
Maximum Power Consumption3 W
Operation Mode24 hour
Input Voltage Rating Range(s)120 VAC, 60 Hz
Wire Size Min#14 AWG
Enclosure TypeIndoor metal
Timing Interval1 hour
Country of OriginMexico
