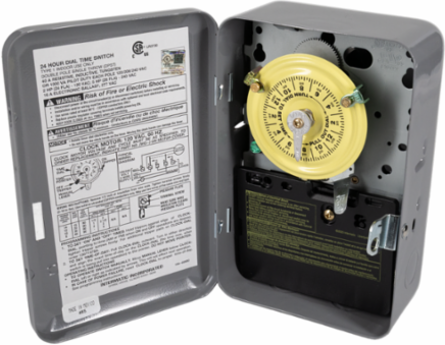

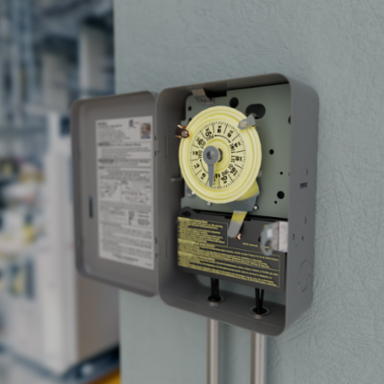

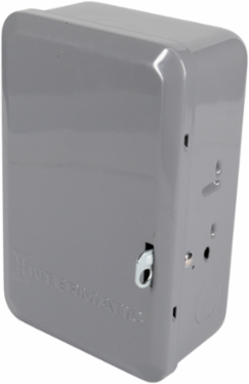

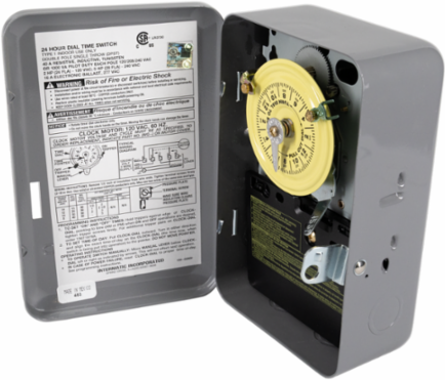

Intermatic T104 24-Hour Mechanical Time Switch, 208-277 VAC, DPST, Indoor Metal Enclosure
- MPN: T104
- UPC: 078275000025
- PPN: INT-T104
- UNSPSC: 39122208
CAD
$124.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features
- Direct 24-hour control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
Documentation & Downloads
Specifications
Additional
- Voltage
- 208-277 VAC, 60 Hz
- ON/OFF Operations
- 12 per day
- Motor Load
- 2 HP @ 120 VAC, 60 Hz; 5 HP @ 240 VAC, 60 Hz
- Inductive Load
- 40 A, 120-277 VAC, 60 Hz
- Pilot Duty Load
- 1000 VA, 120-277 VAC, 60 Hz
- Dimensions (H x W x D)
- 7.875 x 5.125 x 3.437 in
- Knockout Dimensions
- (2) 1/2" - 3/4" bottom, (1) 1/2" - 3/4" back
- Enclosure Type
- Indoor Metal
- Number of Trippers Included
- 1 ON, 1 OFF
- Country of Origin
- Mexico
- Warranty Period
- 1-Year limited
Load Capacity40 A per pole
Temperature Range-40 °F to 130 °F (-40 °C to 54 °C)
Electronic Ballast Load16 A, 120-277 VAC
Resistive Load40 A, 120-480 VAC, 60 Hz
Tungsten Load40 A, 120-277 VAC
Wire Size Range#14 AWG to #8 AWG
Switch TypeDPST
Manual OverrideYes
Power Consumption3 W
ColorGray
