Klein Tools CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
- MPN: CL490
- UPC: 092644694271
- PPN: KLT-CL490
- UNSPSC: 41113654
CAD
$143.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

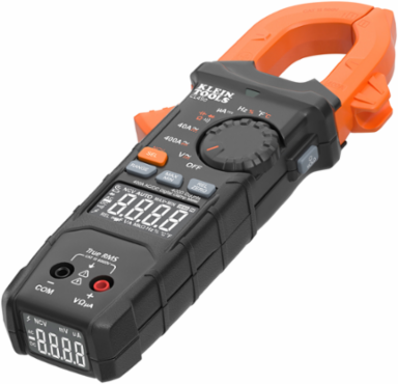

Klein Tools CL490 Dual Display Clamp Meter is auto-ranging for precise measurements with a secondary display for easier viewing in tight spaces. The meter reads AC/DC current, voltage, resistance, continuity,frequency, and capacitance; all with True RMS accuracy. It features diode testing and temperature is taken, via thermocouple. There is NCV detection with audio-visual alerts for additional functional applications. To ensure visibility in any lighting, there is a backlit and hi-vis display.
Features

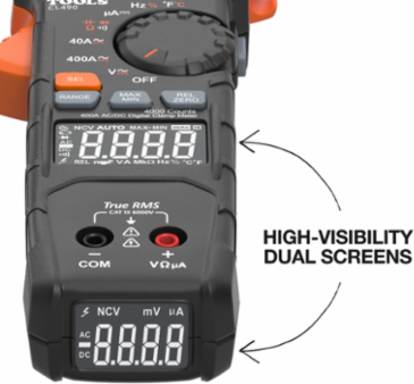

- Dual Display digital clamp meter allows users to see readings in tight space areas
- AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications

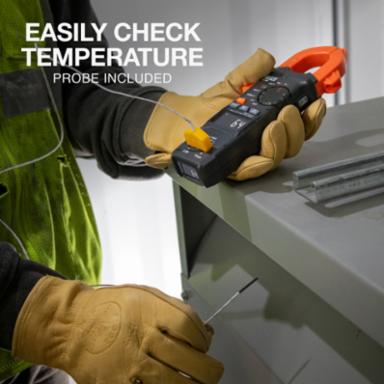

- Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple

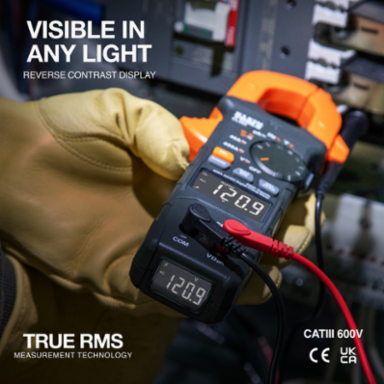

- Backlit reverse-contrast LCDs for clear data and best view-ability in all environments
- Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
- Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb

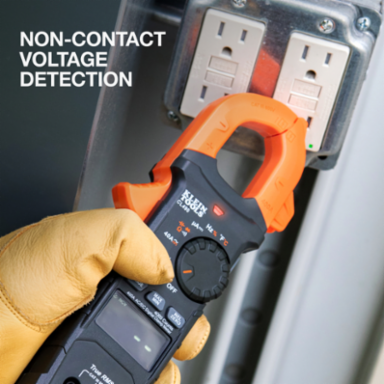

- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
- Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Documentation & Downloads
Specifications
Key Specifications
- Display
- 4000 Count Backlit, Hi-Viz
- Material
- ABS/Electronics
- Current
- 400A AC/DC
- Capacitance
- 4000µF
- AC Voltage
- 600V
- Application
- Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple
- Type
- Dual Screen AC/DC Current TRMS Clamp
- DC Voltage
- 600V
- Functions
- TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature
- Ohms
- 40MΩ Resistance
- Accuracy
- ± (% of Reading + # of Least Significant Digits) Refer to Manual for Accuracy Depending on Active Function Selection Values Stated at 65° to 83°F (18° to 28°C)
- TRMS
- Yes
- Overall Width
- 1.5 Inch (3.8 cm)
- Jaw Size
- 4.1 cm (1.6 Inch)
- Width
- 3.5200 in
- Weight
- 1.4000 lbs

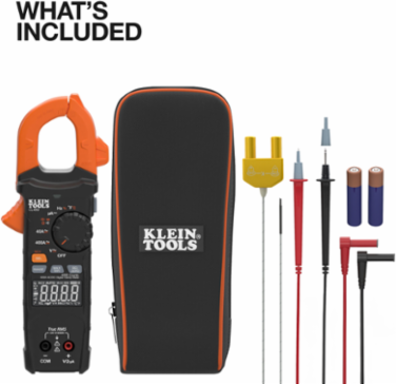

IncludedClamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; 2 x AA Batteries
Auto-Power OffYes
Drop Protection6.6' (2 m)
Batteries2 x AA
Voltage600V AC/DC
DC Micro-Amp200µA
Frequency10Hz - 60kHz
DC Polarity IndicatorYes
StandardCATIII 600V, Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032;Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032
Temperature Range-40° to 1832°F (-40° to 1000°C)
Auto RangingYes
Overall Height21.5 cm (8.46 Inch)
Overall Length9 cm (3.54 Inch)
Height1.7400 in
Depth9.1700 in
